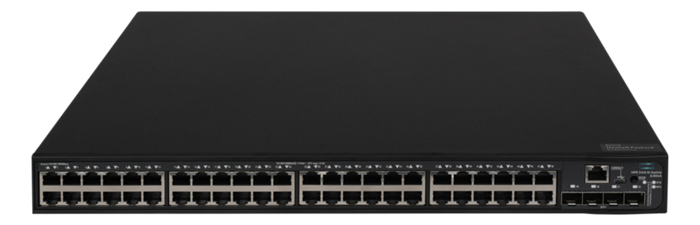

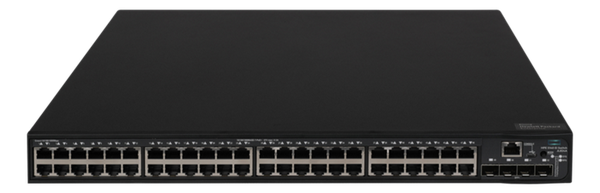

JL824A HPE FlexNetwork 5140 48 x 1GE PoE+, 4 x 10G SFP+ EI Switch

84.716.000₫

Còn hàng

( Giá sản phẩm chưa bao gồm VAT )

Tổng quan

Chuyên phân phối thiết bị chuyển mạch JL824A HPE FlexNetwork 5140 với 48 cổng 1GE hỗ trợ PoE+ và 4 cổng 10G SFP+ uplink, EI switch, hàng chính hãng đầy đủ giấy tờ CO CQ, liên hệ nhận ngay báo giá tốt

✓ Mã sản phẩm: JL824A
✓ Tình trạng: Còn Hàng

Số lượng

Hỗ trợ trực tuyến

Tư vấn bán hàng 1

0846672222

Tư vấn bán hàng 2

0936368995

Email liên hệ

toantm@tic.vn

Mô tả
Đánh giá sản phẩm

Thông số kỹ thuật switch HPE JL824A

Datasheet JL824A
Specifications
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ fixed 10G SFP+ ports
Additional ports and slots	1 RJ-45 serial console port
Physical characteristics	17.32 in. (w) x 14.17 in. (d) x 1.72 in. (h) (44 cm x 36 cm x 4.36 cm) (1U height) 17.64 lb (8 kg)
Memory and processor	512 MB SDRAM, 256 MB flash
Mounting and enclosure	Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included)
Performance	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Througut 130.9 Mpps Switching capacity: 176 Gbps Routing table size 512 entries (IPv4), 256 entries (IPv6) MAC address table size 16384 entries IPv6 Ready Certified
Environment	Operating temperature: 23°F to 113°F (–5°C to 45°C) Operating relative humidity: 10% to 90%, noncondensing Nonoperating/Storage temperature: –40°F to 158°F (–40°C to 70°C) Nonoperating/Storage relative humidity: 5% to 95%, noncondensing Acoustic: Low-speed fan: 50.6 dB, High-speed fan: 54.6 dB; ISO 7779
Electrical characteristics	Frequency: 50/60 Hz Voltage: 100 - 240 VAC DC voltage: –54 VDC to –57 VDC Current: 10A Maximum power rating: 478W Idle power: 47W PoE power: 370W PoE+
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance
Immunity	Generic: EN 55024 ESD: EN 300 386
Emissions	FCC Part 15 Subpart B Class A; ICES-003 Class A; VCCI-CISPR 32 Class A; EN 55032 Class A; AS/NZS CISPR32 Class A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993
Management	IMC; Smart MC, command-line interface; web browser; SNMP manager
