FPR2110-NGFW-K9 Specification |
||
| Product Number | FPR2110-NGFW-K9 | |

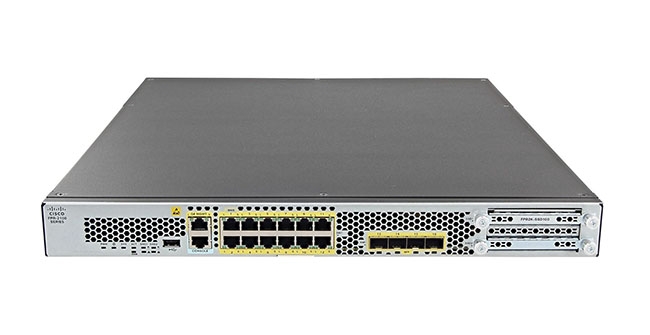

| Product Description | Cisco Firepower 2110 NGFW Appliance, 1RU | |
| Hardware Specifications | ||
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | |
| Form factor (rack units) | 1RU | |
| I/O module slots | 0 | |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces | |
| Network modules | None | |
| Maximum number of interfaces | Up to 16 total Ethernet ports (12x1G RJ-45, 4x1G SFP) |
|
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) | |
| Serial port | 1 x RJ-45 console | |
| USB | 1 x USB 2.0 Type-A (500mA) | |
| Storage | 1x 100 GB, 1x spare slot (for MSP) | |
| Power supplies | Configuration | Single integrated 250W AC power supply. |
| AC input voltage | 100 to 240V AC | |
| AC maximum input current | < 2.7A at 100V | |
| AC maximum output power | 250W | |
| AC frequency | 50 to 60 Hz | |
| AC efficiency | >88% at 50% load | |
| Redundancy | None | |
| Fans | 4 integrated (2 internal, 2 exhaust) fans | |
| Noise | 56 dBA @ 25C 74 dBA at highest system performance. |
|
| Rack mountable | Yes. Fixed mount brackets included (2-post). Mount rails optional (4-post EIA-310-D rack) |
|
| Weight | 16.1 lb (7.3 kg): with 2x SSDs | |
| Temperature: operating | 32 to 104°F (0 to 40°C) | |
| Temperature: nonoperating | -4 to 149°F (-20 to 65°C) | |
| Humidity: operating | 10 to 85% noncondensing | |
| Humidity: nonoperating | 5 to 95% noncondensing | |
| Altitude: operating | 10,000 ft (max) | |
| Altitude: nonoperating | 40,000 ft (max) | |
