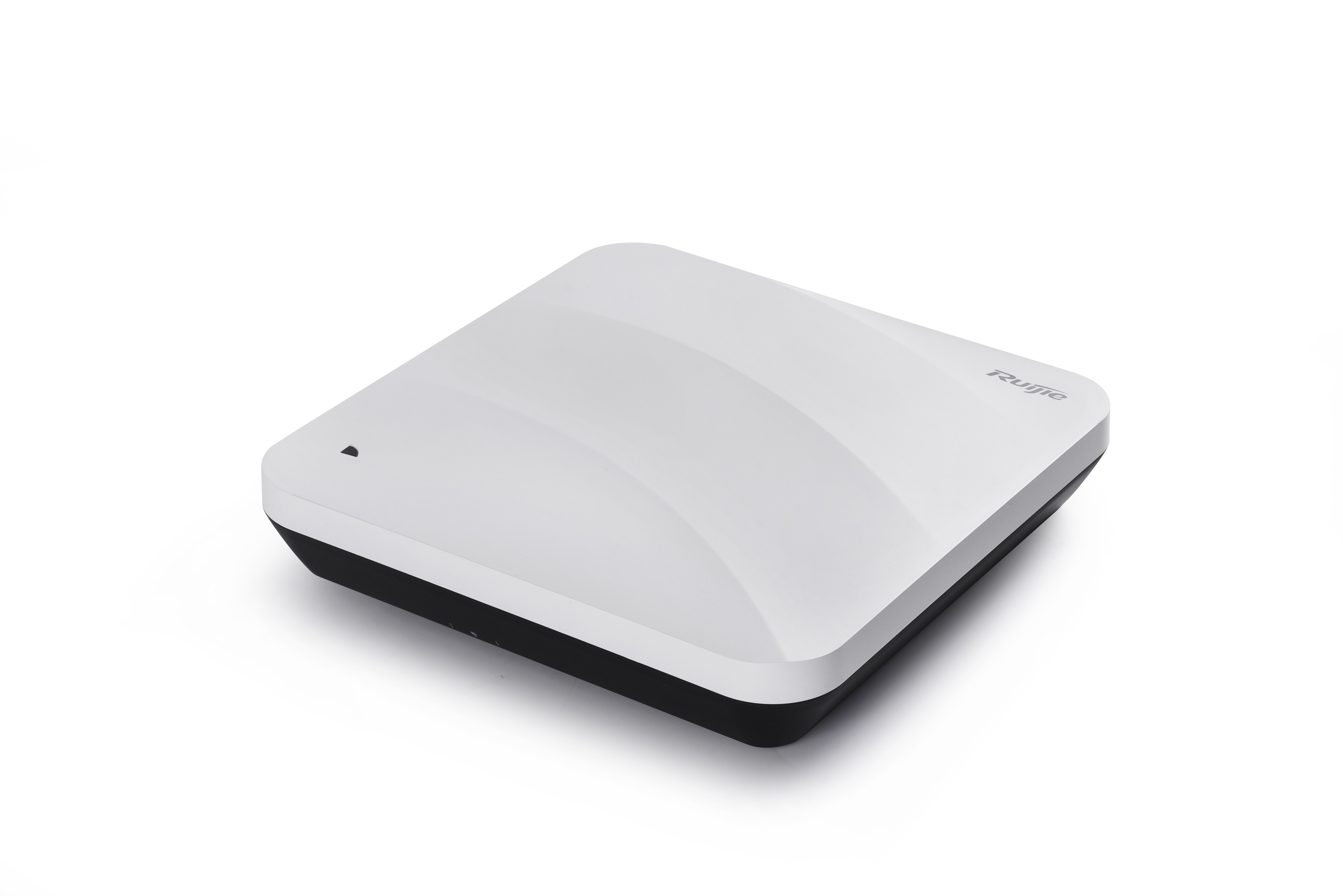

Thiết bị Access point WiFi6 Ruijie RG-AP820-L(V3) , ốp trần, lắp đặt trên tường
- Tốc độ 1.775Gbps (Radio1：2.4G 0.574Gbps, Radio2：5G 1.2Gbps) chế độ 2.4G+5G
Tốc độ 2.4Gbps (Radio1：5G 1.2Gbps, Radio2：5G 1.2Gbps)
- Hỗ trợ 2 băng tần 2.4GHz và 5GHz chuẩn 802.11a/b/g/n/ac/ax Wave1/Wave2, MU-MIMO
- Anten liền 2.4G: 3dBi, 5G: 3dBi. Spatial Stream Up to 4: 2×2:2 ở 2.4GHz , 2×2:2 ở 5GHz
- Hỗ trợ tối đa 1024 người dùng | Tối đa 32 SSID
- 1 cổng 10/100/1000M Uplink (hỗ trợ cấp nguồn PoE), 1 cổng Console
- Hỗ trợ nguồn 802.3af (12.95W)
- Hỗ trợ nguồn DC 48V/1A
- Đèn LED báo tín hiệu & tình trạng hoạt động (đỏ, xanh, lam...)
- Hỗ trợ dịch vụ Ruijie Cloud cho phép cấu hình nhanh, đơn giản, quản lý và giám sát dễ dàng
- Dòng sản phẩm phù hợp sử dụng cho khách sạn, cửa hàng, cà phê, văn phòng lớn, phòng hội họp và truyền thông, stream, iCafe, Cyber Game, Mobile-Gaming...
- Hỗ trợ các tính năng WIFI marketing (Tự tạo trang chào, logo, link dẫn tới trang đích, Facebook...)
* Quản lý lưu lượng của người dùng, thời gian, dung lượng data, số lượt truy cập trong ngày.
* Các tiêu chuẩn WiFi Alliance · Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM®
* Supported wireless LAN controllers: Ruijie WS Series Wireless Controller, Ruijie MACC-Base Software Controller, Ruijie Cloud (Public Cloud)
THÔNG SỐ
| Model | RG-AP820-L(V2) | |
| Hardware specifications | ||
| Radio | Dual-radio dual-band： | |
| Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO | ||
| Radio 2: 5G 11ax: 2x2 MIMO | ||
| Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.483GHz | |
| 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) | ||
| Spatial Streams | Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz | |
| Max Throughput | Maximum throughput (5G+5G mode) per AP: 2.4Gbps | |
| Radio1：5G low band 1.2Gbps | ||
| Radio2：5G high band 1.2Gbps | ||
| 2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps | ||
| Radio1：2.4G 0.574Gbps | ||
| Radio2：5G 1.2Gbps | ||
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps | |
| DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps | ||
| MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM | ||
| OFDMA (up to 1024-QAM) | ||
| Receiver Sensitivity | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） | |
| 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） | ||
| 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） | ||
| 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） | ||
| 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） | ||
| 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） | ||
| 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） | ||
| Antenna | Integrated antenna design | |
| Antenna Gain | 2.4G: 3dBi | |
| 5G: 3dBi | ||
| Service Ports | 1 10/100/1000M Ethernet ports, PoE In | |
| Management Port | 1 console port | |
| Reset Button | Support | |
| Anti-theft Lock | Support | |
| LED Indicator | 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) | |
| Transmit Power | ≤100mw（20dBm） (vary depending on different countries) | |
| Adjustable Power | 1dBm | |
| Power Supply | Local power supply (DC 48V/1A) （Power adapters are sold separately） | |
| PoE (802.3af) – full spectrum operation | ||
| Power Consumption | ＜12.95W | |
| Physical Specifications | ||
| Temperature | Operating Temperature: -10°C to 50°C | |
| Storage Temperature: -40°C to 70°C | ||
| Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
| Installation Mode | Ceiling/wall-mountable | |
| Dimensions (W x D x H) | 153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） | |
| Weight | ≤0.5kg (include mount kit) | |
| IP Rating | IP41 | |
| Certifications and Compliance | ||
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac | |
| · Wi-Fi CERTIFIED 6™ | ||
| · WPA3™-Enterprise, Personal | ||
| · Wi-Fi Enhanced Open™ | ||
| · Wi-Fi Agile Multiband™ | ||
| · WMM® | ||
| Safety Standard | GB4943, EN/IEC 62368-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Radio Standard | SRRC, EN300 328, EN301 893 | |
| Software Specifications | ||
| WLAN | Maximum clients per AP | 1024 |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP | IPv4 and IPv6 address | Support |
| Multicast routing | Multicast to unicast conversion | |
| DHCP service | DHCP Snooping, Option 82, Server, Client | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller |
| Ruijie MACC-Base Software Controller | ||
| Ruijie Cloud (Public Cloud) | ||
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| LLDP | LLDP, LLDP-MED, LLDP-POE | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
