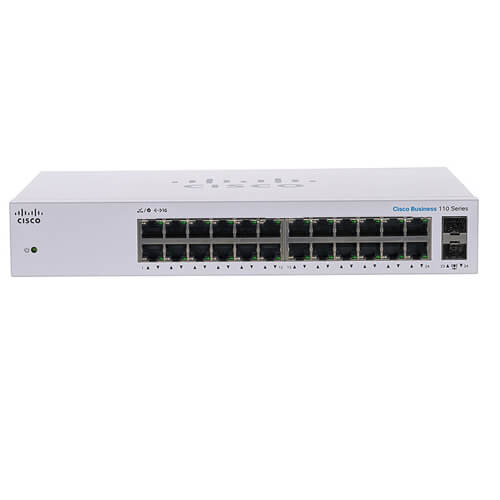

Thiết bị chuyển mạch Switch Cisco CBS110-24PP-EU, thuộc danh mục Cisco Busines 110 Series Unmanaged Switches, là dòng thiết bị chuyển mạch giá cả phải chăng cung cấp kết nối Gigabit Ethernet cho mạng doanh nghiệp nhỏ của bạn. Cisco CBS110-24PP-EU cung cấp 24 cổng 10/100/1000 ports (12 support PoE with 100W power budget), 2 Gigabit SFP (combo with 2 10/100/1000 ports) cho các kết nối mạng.
Đặc tính kỹ thuật
| Model | CBS110-24PP-EU |
| Performance | |
| Capacity in millions of packets per second (64-byte packets) | 35.7 mpps |
| Switching capacity | 48 Gbps |
| General | |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| MAC table | 8K addresses |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Hardware | |
| Total system ports | 24 Gigabit Ethernet |
| RJ-45 ports | 24 Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) | 2 SFP (combo with 2 Gigabit Ethernet) |
| Number of ports that support PoE | 12 |
| Power dedicated to PoE | 100W |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash | 8MB |
| CPU | 400MHz ARM |
| CPU memory | 64MB |
| Packet buffer | 2 Mbit |
| Environmental | |
| Unit dimensions (W x D x H) | 440 x 203 x 44 m |
| Unit weight | 2.98 kg |
| Power | 110-240VAC, 50-60 Hz, internal, universal |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 0° to 40°C |
| Storage temperature | –20° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
| Power consumption (worst case) | |
| System power consumption | 110V=17.21W 220V=17.29W |
| Power consumption (with PoE) | 110V=135.67W 220V=133.82W |
| Heat dissipation (BTU/hr) | 462.93 |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 340,703 |
- Bảo hành: 12 tháng.
