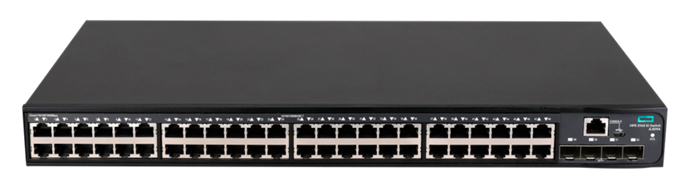

| Datasheet JL829A |
| Specifications |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| 4 SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports and slots |
1 RJ-45 serial console port |
| Physical characteristics |
| Dimensions |
17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height) |
| Weight |
7.72 lb (3.5 kg) |
| Memory and processor |
512 MB SDRAM, 256 MB flash |
| Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Performance |
|
1000 Mb Latency |
< 5 µs |
| 10 Gbps Latency |
< 3 µs |
| Throughput |
132 Mpps |
| Routing/Switching capacity |
176 Gbps |
| Routing table size |
512 entries (IPv4), 256 entries (IPv6) |
| MAC address table size |
16384 entries |
| Environment |
|
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
| Operating relative humidity |
10% to 90%, noncondensing |
| Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
| Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
| Acoustic |
Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779 |
| Electrical characteristics |
|
Frequency |
50/60 Hz |
| Maximum heat dissipation |
130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max |
| Voltage |
100 - 240 VAC
-48 to -60 VDC |
| Current |
10 A |
| Maximum power rating |
44 W |
| Idle power |
38 W |
| Notes: |
- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.
- When supplemented with the use of an HPE RPS1600 or RPS 800 Redundant Power System, up to 54 W of DC power can be supplied. DC input voltage range is -48 to -60 VDC. Total DC input power is 36 W typical and 54 W maximum. DC input voltage range is -48 VDC to -60 VDC. DC input source is the HPE RPS1600 or RPS 800.
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
Emissions |
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
| Immunity |
| Generic |
EN 55024 |
| ESD |
EN300 386 |
| Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager |
