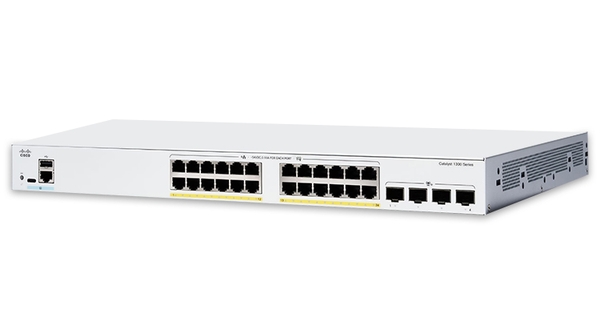

Switch Cisco Catalyst C1300-24T-4G 24x 10/100/1000 ports, 4 SFP Uplink

11.500.000₫
Còn hàng
( Giá sản phẩm chưa bao gồm VAT )

Switch Cisco Catalyst C1300-24T-4G 24x 10/100/1000 ports, 4 SFP Uplink

Mô tả tổng quang:

  • Tốc độ Lan: Ethernet Gigabit (10/100/1000Mbps).
  • Số cổng: 28x Gigabit Ethernet Ports.
  • Cổng kết nối RJ45: 24x Gigabit Ethernet RJ-45 ports.
  • Uplink Port: 4x Gigabit SFP.
  • Switch quản lý: Managed switch.
  • Switch PoE: không hỗ trợ.
  • Switching capacity: 56 Gbps.
  • Forwarding rate: 41.66 mpps.
  • Management: CLI, SSH, Telnet, Web, Mobile App, Cloud.
  • Kiểu Switch: Switch Managed Layer 3, 1U Rack-mount, Fanless.

Switch Cisco Catalyst C1300-24T-4G – Hiệu suất mạnh mẽ, kết nối linh hoạt

Switch Cisco Catalyst C1300-24T-4G là một trong những dòng switch quản lý cấp doanh nghiệp, mang lại hiệu suất cao, khả năng mở rộng linh hoạt và bảo mật tối ưu cho hệ thống mạng. Với 24 cổng Gigabit Ethernet (10/100/1000 Mbps) và 4 cổng uplink SFP quang tốc độ cao, thiết bị này phù hợp cho các doanh nghiệp vừa và nhỏ, văn phòng, trường học và hệ thống mạng yêu cầu băng thông lớn.

Đặc điểm nổi bật:

Hiệu suất cao: Với 24 cổng Gigabit, thiết bị đảm bảo tốc độ truyền tải dữ liệu nhanh chóng và ổn định, giúp giảm thiểu tắc nghẽn mạng.
Kết nối linh hoạt: 4 cổng SFP hỗ trợ kết nối quang tốc độ cao, mở rộng hệ thống mạng dễ dàng.
Bảo mật nâng cao: Hỗ trợ các tính năng bảo mật tiên tiến như 802.1X, ACLs, DHCP Snooping, giúp bảo vệ mạng khỏi các cuộc tấn công.
Quản lý dễ dàng: Giao diện quản lý web thân thiện, hỗ trợ CLI, SNMP, và tích hợp với Cisco DNA Center để tối ưu vận hành.
Tiết kiệm năng lượng: Công nghệ Cisco EnergyWise giúp giảm mức tiêu thụ điện năng mà không ảnh hưởng đến hiệu suất.

Ứng dụng thực tế:

🔹 Kết nối hệ thống mạng nội bộ cho doanh nghiệp, văn phòng, trường học.
🔹 Mở rộng hệ thống mạng với đường truyền quang tốc độ cao.
🔹 Đảm bảo hiệu suất ổn định cho các ứng dụng quan trọng như VoIP, video conference, dữ liệu lớn.

Switch Cisco Catalyst C1300-24T-4G là sự lựa chọn lý tưởng cho những doanh nghiệp cần một giải pháp mạng mạnh mẽ, an toàn và linh hoạt. Nếu bạn đang tìm kiếm một switch chất lượng cao với giá thành hợp lý, đây chắc chắn là một sản phẩm đáng cân nhắc! 🚀

Port 8 x 1 Gigabit Ethernet
2x Gigabit copper/SFP combo ports
Console port Cisco standard RJ-45 console port and USB Type C port
USB port USB Type C port on the front panel of the switch for easy file and image management as well as console port
Performance
Switching capacity in Gigabits per second (Gbps) 20 Gbps
Capacity in Millions of Packets Per Second (mpps) (64-byte packets) 14.88 Mpps
Hardware
CPU ARM dual-core at 1.4 GHz
DRAM 1 GB DDR4
Flash 512 MB
Packet buffer 1.5 MB
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Feature
Spanning Tree Protocol Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 4093 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
Customer premises equipment (CPE) VLAN
Auto surveillance VLAN (ASV)
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
IPv4 routing Wire-speed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces
IPv6 routing Wire-speed routing of IPv6 packets
Layer 3 interface Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Routing Information Protocol (RIP) v2 Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR) Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
DHCP server Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes
Support for DHCP options
Environmental
Unit dimensions (W x H x D) 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
Unit weight 1.39 kg (3.06 lb)
Power 100-240V 50-60 Hz
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 23° to 122°F (-5° to 50°C)
Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Fan (number) Fanless
MTBF at 25°C (hours) 2,171,669
