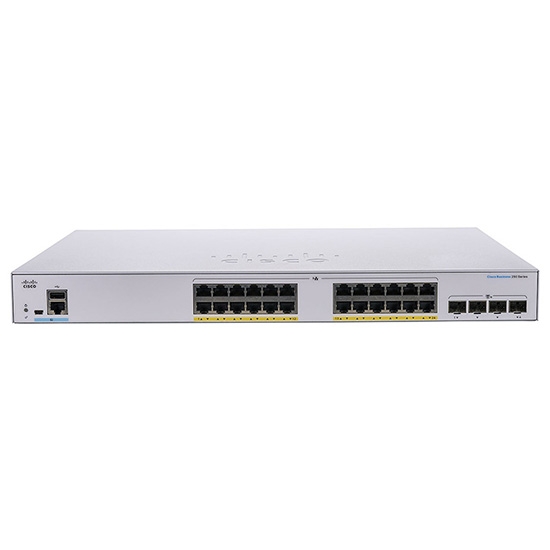

Thiết bị chuyển mạch Switch Cisco C1000-24PP-4G-L được thiết kế cho doanh nghiệp vừa và nhỏ, với giá rẻ hơn các dòng switch 2960x. C1000-24PP-4G-L với 16 cổng Gigabit 10/100/1000 Ethernet, 4x 1G SFP uplinks, cung cấp các kết nối Layer trong hệ thống mạng, 8 cổng PoE+ 195W PoE budget cấp nguồn cho camera, IP Phone...
Switch Cisco C1000-24PP-4G-L được thiết kế không quạt, có thể được triển khai ngay tại nơi làm việc mà không ảnh hưởng tới môi trường xung quanh.
|
Description |
Performance |
| Hardware | |
| Interface | 8x PoE+ and 16x 10/100/1000 Ethernet ports and a 195W PoE budget, 4x 1G SFP uplinks |
| Console ports |
|
| Indicator LEDs |
|
| Dimensions (WxDxH in inches) | 17.5 x 11.76 x 1.73 |
| Weight | 3.53 |
|
Memory and processor |
|
|
CPU |
ARM v7 800 MHz |
|
DRAM |
512 MB |
|
Flash memory |
256 MB |
|
Performance |
|
|
Forwarding bandwidth |
28 Gbps |
|
Switching bandwidth |
56 Gbps |
|
Forwarding rate |
41.67 Mpps |
|
Unicast MAC addresses |
16000 |
|
IPv4 unicast direct routes |
542 |
|
IPv4 unicast indirect routes |
256 |
|
IPv6 unicast direct routes |
414 |
|
IPv6 unicast indirect routes |
128 |
|
IPv4 multicast routes and IGMP groups |
1024 |
|
IPv6 multicast groups |
1024 |
|
IPv4/MAC security ACEs |
600 |
|
IPv6 security ACEs |
600 |
|
Maximum active VLANs |
256 |
|
VLAN IDs available |
4094 |
|
Maximum STP instances |
64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
|
Electrical |
|
| Power |
Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.21A to 0.26A |
| Power rating (maximum consumption) | 0.24 kVA |
| PoE Suports | Yes |
| Total PoE Suports | 195W |
| PoE Power | 30W for any 6 or 15W for ports 1 to 8 |
| Safety and compliance | |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 |
| EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
