| Aruba Partnumber | JL809A |

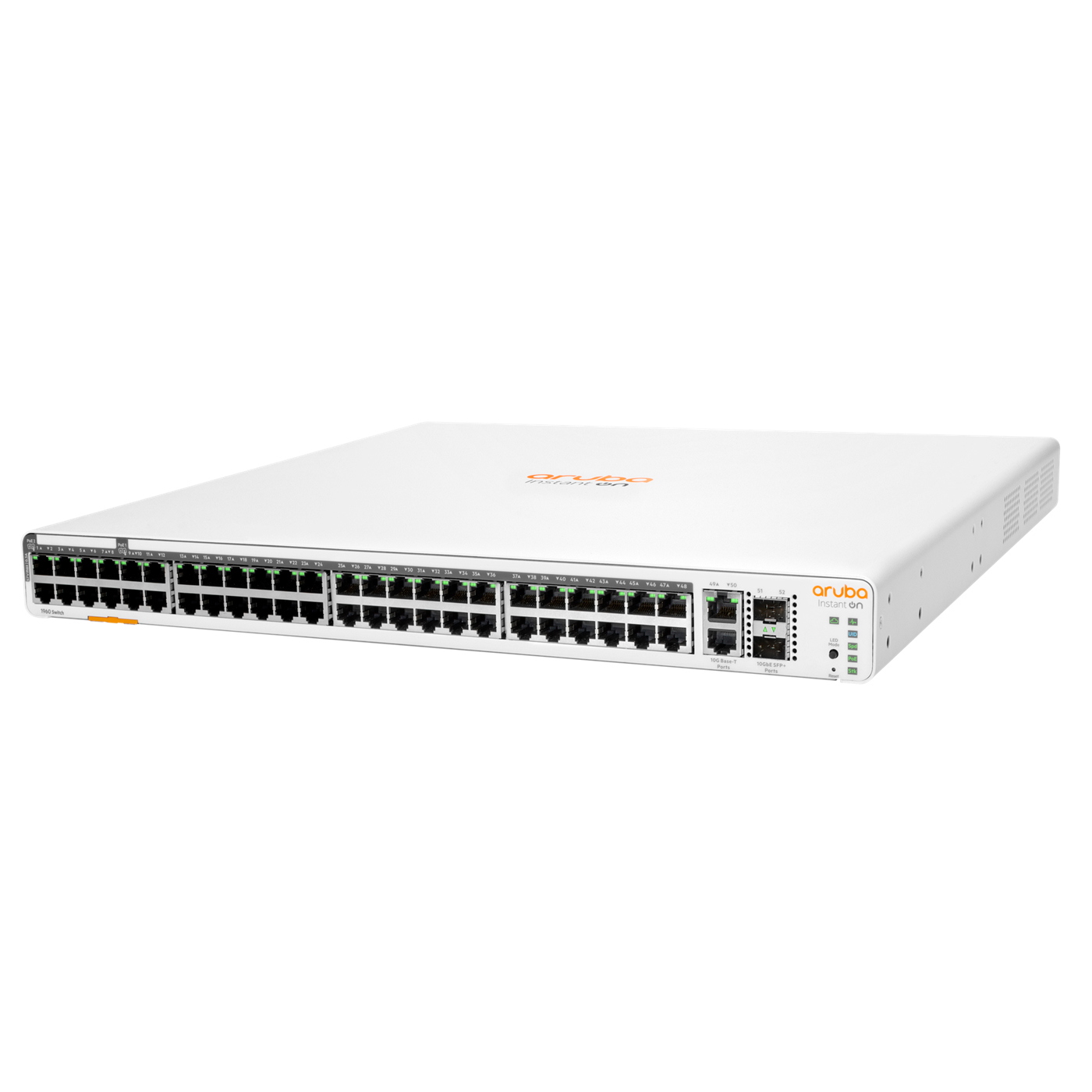

| Description | Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+600W Switch |
| Specifications | |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 Mbps ports including 8 CL4 and 40 CL6 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full;1000BASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports |
| Device Management | Aruba Instant On Cloud;Web browser; SNMP Manager |
| Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet.2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
| Physical Characteristics | |
| Dimensions | 402.75(d) x 442.5(w) x43.95(h) mm |
| Weight | 10.8 lb (4.9 kg) |
| CPU | Single-Core ARM v7 Cortex-A9 @800MHz |
| Performance | |
| 100 Mb Latency | < 4.4 uSec |
| 1000 Mb Latency | < 2.2 uSec |
| 10000 Mb Latency | < 1.1 uSec |
| Throughput (Mpps) | 131 Mpps |
| Capacity | 176 Gbps |
| Routing Table size (# of static entries) | 32 IPv4/IPv6 |
| MAC Address table size (# of entries) | 16,000 entries |
| Environment | |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to70°C) up to 15000 ft |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| 50Hz/60Hz | 100-127VAC /200-240VAC |
| Current | 7.9A/0.5A |
| Maximum power rating | 100-127V: 790W 200-220V: 760W |
| Idle power | 100-127V: 60W 200-220V: 100W |
| PoE power | Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE) |
