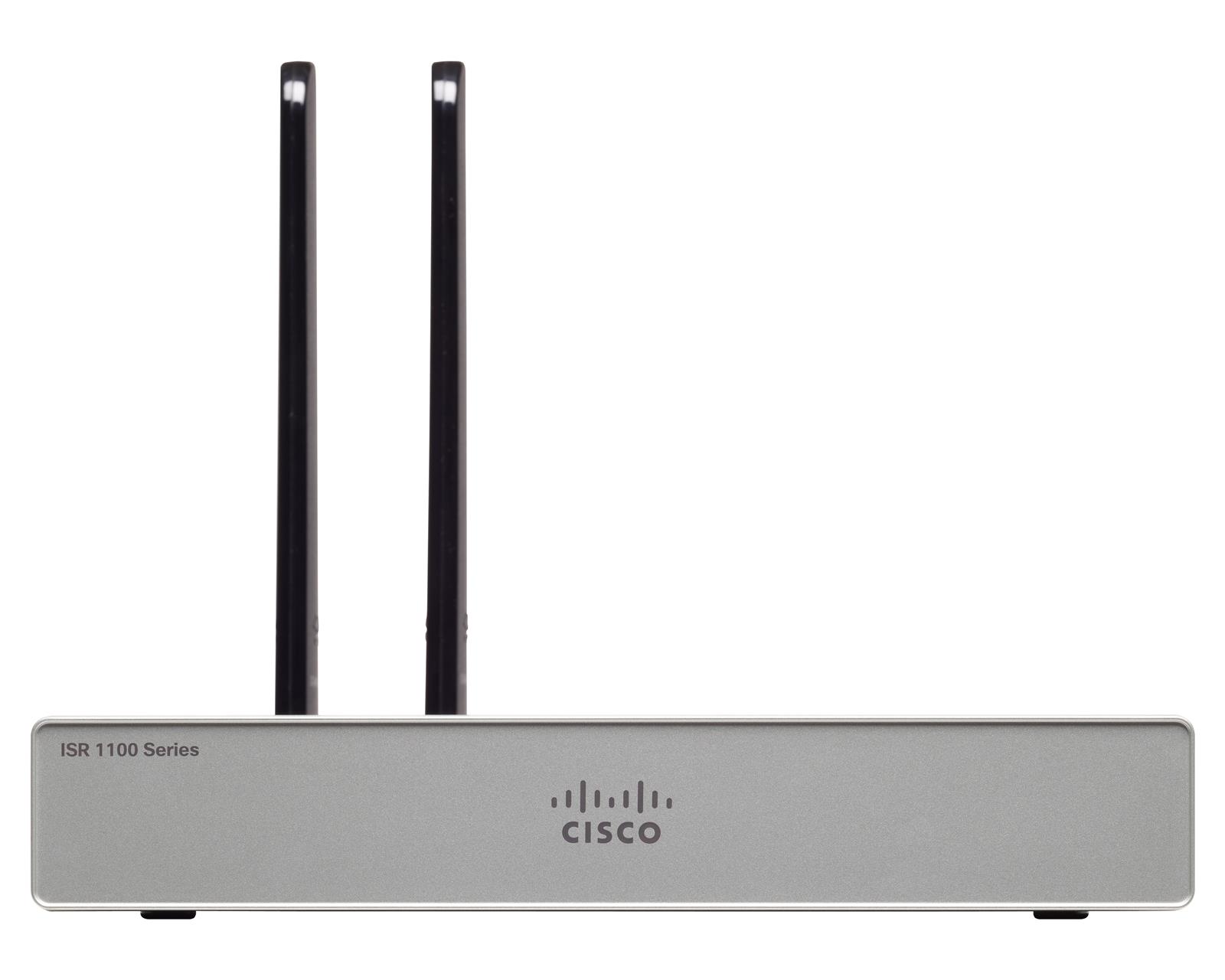

Router C1101-4PLTEP

Model

Description

ISR 1101 4P GE Ethernet and LTE Secure Router with Pluggable

Physical Properties

WAN GE

1

WAN GE/SFP combo

N/A

ADSL2/VDSL2+

N/A

LTE Advanced (CAT6)

N/A

802.11ac

N/A

LAN GE

4

PoE or PoE+

N/A

Integrated USB 3.0 AUX/console

Yes (No AUX)

Pluggable

Yes (All)

Dimensions (H x W x D)

1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models)

Weight

3.78 lb (1.71kg)

AC Power Input voltage

Universal 100 to 240 VAC

Frequency

50-60 Hz

Maximum output power

30W (default)

Output voltages

12 VDC

Console port

Micro USB console (USB 3.0)

WAN GE

1

LAN GE

4

Default and maximum DRAM

4GB

Default and maximum flash

4GB

Environmental

Operating humidity

10% to 85% relative humidity (noncondensing)

Operating temperature

32° to 113°F (0° to 45°C)
