| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed & ETL Verified (4‐connection) | |
| Category | ANSI/TIA‐568‐C.2 Category 6 | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20 (89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V‐0 | |
| Spring Wire | Phosphor bronze plated with 50μin gold over | |
| IDC Plastic | Polycarbonate, UL 94V‐0 rated | |
| IDC Contact | Phosphor bronze plated with minimum 100μin thick tin |
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |

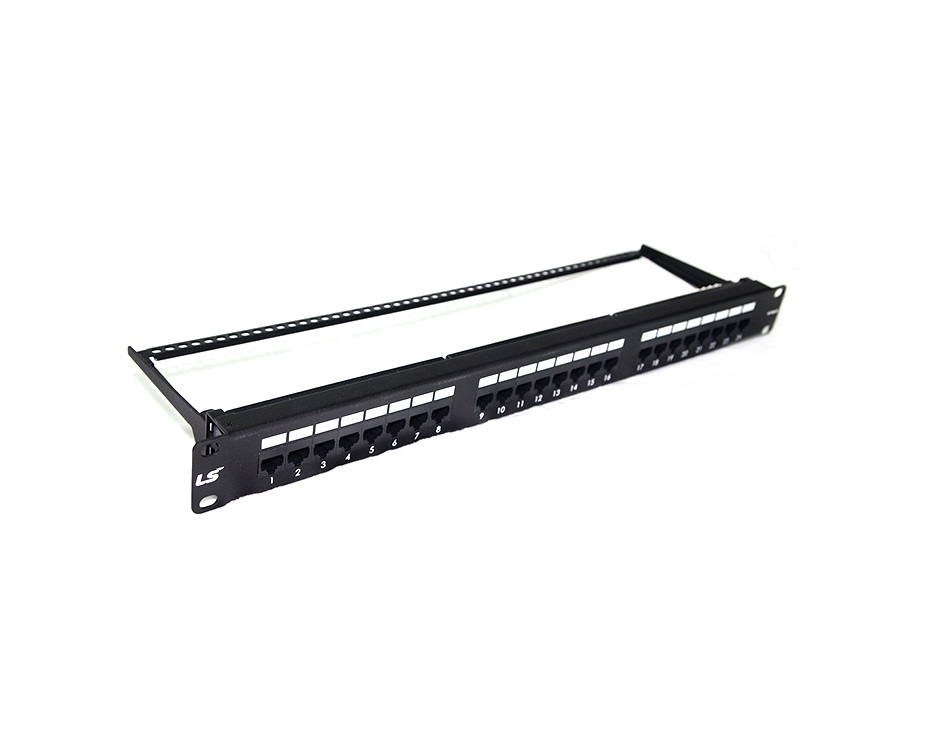

| 24‐Port Category 6 Unshielded Patch Panel with wire management |
1.73 x 19 | LS‐PP‐UC6‐24P‐WM | Rack : 19‐inch standard 1U rack Tool: LS‐TOOL‐MJ, LS‐STOOL |
