| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6 | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 23~26 (Solid wire) |
| PHYSICAL | ||
| Cap | Polycarbonate (PC resin), UL 94V-2 rated, Transparent Black | |
| Housing | Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin) UL94V-0 rated |
|
| Jack Contacts | Phosphor bronze flat wire, plated with 1.27um (50uin) thick hard gold on contact area over nickel underplate |
|
| Contact Bracket | Polycarbonate (PC resin), UL94V-2 rated | |
| PCB | FR4, UL94V-0 rated | |
| IDC Terminals | Phosphor Bronze, plated with tin over nickel underplate | |
| IDC Block | Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated |
| Description | Dimension (H x W x D, mm) |
Part Number | Compatible Items |

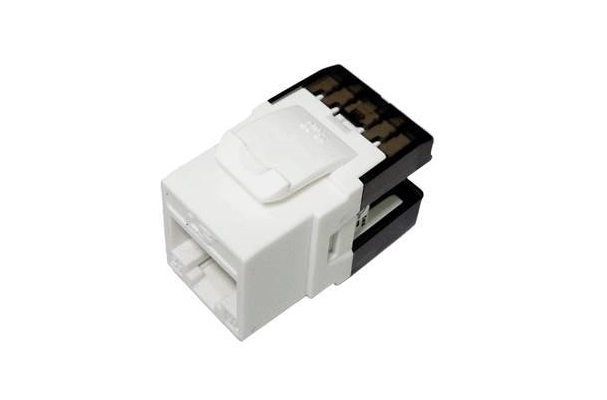

| Unshielded Category 6 Modular Jack 180-degree IDC White | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-WH-ERI | Panel : LS Empty Panel series Outlet : LS-FP-SA(SF)(SU)(US) series Tool : LS-EZT-TOOL-ER |
| Unshielded Category 6 Modular Jack 180-degree IDC Black | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-BK-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC Blue | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-BL-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC Red | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-RD-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-xx-ERI |
