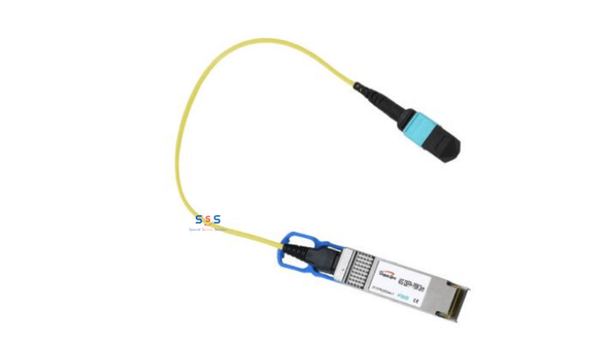

Module quang Gigalight 40Gb/s QSFP+ Parallel Single Mode to MPO AOC upto 2km (GQM-IR-MPO-XXXC)

• Full duplex 4 channel 1310nm parallel module
• Transmission data rate up to 11.3Gbit/s per channel
• SFF-8436 QSFP+ compliant
• Hot pluggable electrical interface
• Differential AC-coupled high speed data interface
• 4 channels 1310nm FP array
• 4 channels PIN photo detector array
• Maximum link length of 2km on G652 single mode fiber (SMF)
• Single Mode 8 fibers MPO(APC) connector receptacle
• Maximum power consumption 3.5W
• Housing isolated from connector ground
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant

Applications

• Infiniband Connectivity SDR/DDR/QDR
• 10/40 Gigabit Ethernet
• 2/4/8 Gbps Fiber Channel
• Data Centers and Storage Arrays
