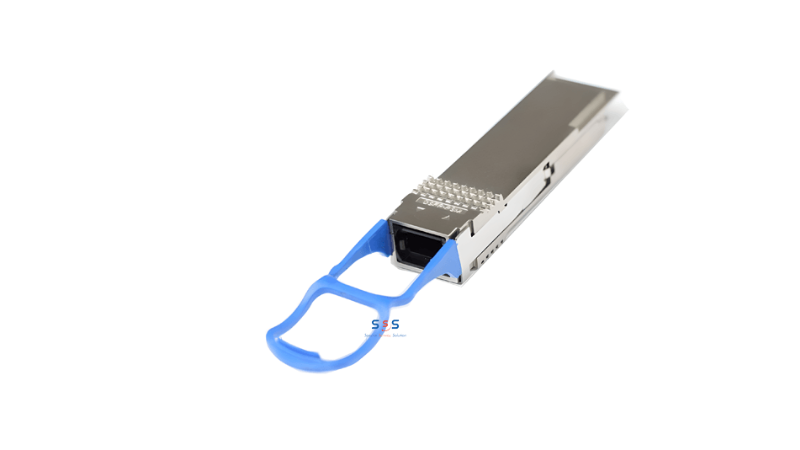

Module quang Gigalight 40Gb/s QSFP+ Parallel Single Mode 2km (GQM-SPO400-IR4C)
Thương hiệu:
Gigalight
Mã sản phẩm:
GQM-SPO400-IR4C
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
| GQM-SPO400-IR4C | 40Gb/s QSFP+ PSM IR4 up to 2km |
- Full duplex 4 channel 1310nm parallel module
- Transmission data rate up to 11.3Gbit/s per channel
- SFF-8436 QSFP+ compliant
- Hot pluggable electrical interface
- Differential AC-coupled high speed data interface
- 4 channels 1310nm FP array
- 4 channels PIN photo detector array
- Maximum link length of 2km on G652 single mode fiber (SMF)
- Single male MPO(APC 8-degree) connector receptacle
- Maximum power consumption 3.5W
- Housing isolated from connector ground
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
Applications
- Infiniband Connectivity SDR/DDR/QDR
- 10/40 Gigabit Ethernet
- Data Centers and Storage Arrays
