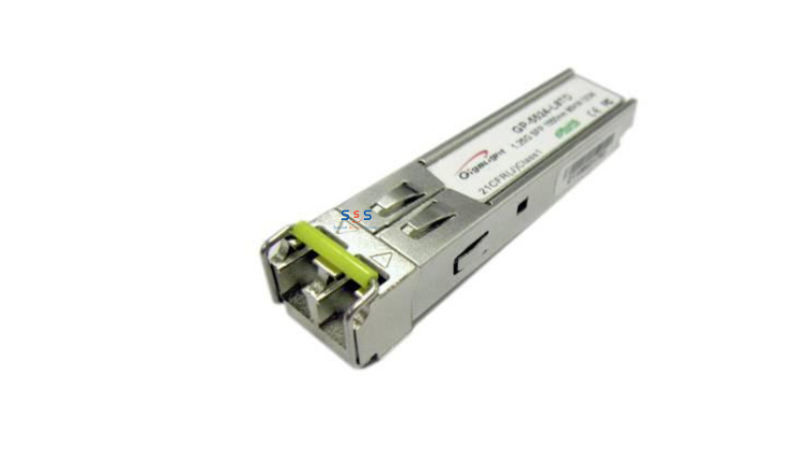

Module quang Gigalight 1550nm 1.25Gbps 80km (GP-5524-L8CD)
Thương hiệu:
Gigalight
Mã sản phẩm:
GP-5524-L8CD
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
| GP-5524-L8CD | 1550nm, 1.25Gbps, 80km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
- Data-rate of 1.25Gbps operation
- 1550nm DFB laser and PIN photo detector for 80km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring:
- Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
