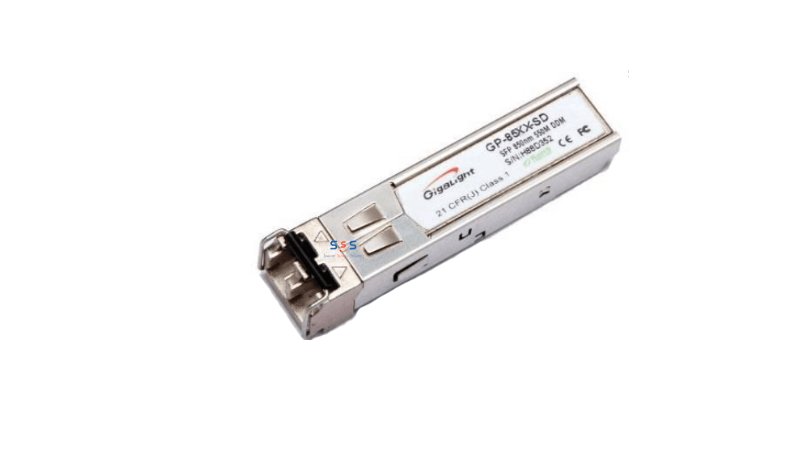

Module quang Gigalight 1.25Gbps SFP 550m (GP-8524-S5CD)
Thương hiệu:
Gigalight
Mã sản phẩm:
GP-8524-S5CD
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
| GP-8524-S5CD | 850nm, 1.25Gbps, 550m, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring |
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- 550m transmission with 50/125µm MMF
- 300m transmission with 62.5/125µm MMF
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature:Standard :
0 to +70°C
Extended : -20 to +85°C
industrial : -40 to +85°C
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
