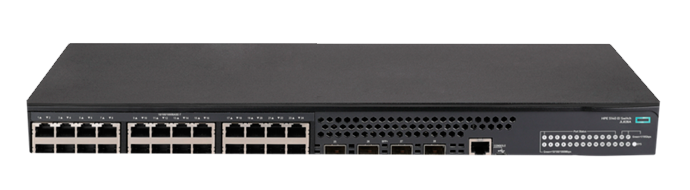

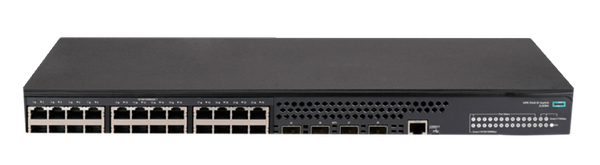

Datasheet JL828A | ||
Specifications |
||
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
4 SFP+ fixed 1000/10000 SFP+ ports |
||
Additional ports and slots |
1 RJ-45 serial console port |
|
Physical characteristics | ||
Dimensions |
17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height) |
|
Weight |
5.5 lb (2.5 kg) |
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
|
Performance | ||
1000 Mb Latency |
< 5 µs |
|
10 Gbps Latency |
< 3 µs |
|
Throughput |
96 Mpps |
|
Routing/Switching capacity |
128 Gbps |
|
Routing table size |
512 entries (IPv4), 256 entries (IPv6) |
|
MAC address table size |
16384 entries |
|
Environment | ||
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
High-speed fan: 36.8 dB; ISO 7779 |
|
Electrical characteristics | ||
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
64/88 BTU/hr (67.52/92.84 kJ/hr) |
|
Voltage |
100 - 240 VAC, rated |
|
Current |
2 A |
|
Maximum power rating |
24 W |
|
Idle power |
19 W |
|
Notes: |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
Emissions | FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 | |
Immunity | ||
Generic | EN 55024 | |
ESD | EN300 386 | |
Management | IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager |
