| Datasheet HPE JL823A | |
| Specifications | |

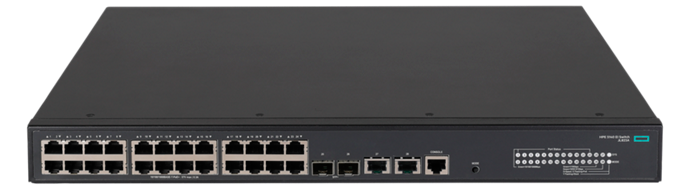

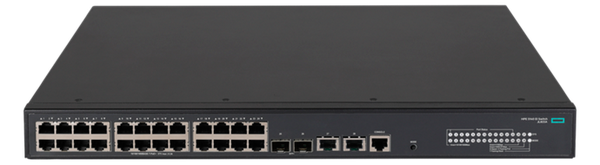

| Detailed Product Description | HPE FlexNetwork 5140 EI switch with 24 1GbE, power-over-Ethernet-plus ports (up to 370W), 2 SFP+ ports and 2 1/10GBASE-T ports |
| External I/O Ports | (24) RJ-45 autosensing 10/100/1000 ports (2) SFP+ fixed 1000/10000 SFP+ ports (2) RJ-45 1/10GBASE-T ports |
| PoE Capability | 370 W PoE+ |
| Management Features | IMC - Intelligent Management Center, SmartMC, Command-line interface, Web browser, SNMP manager |
| Performance | |
| Routing/switching Capacity | 128 Gbps |
| Throughput | up to 96 Mpps |
| Stacking Capabilities | IRF 9 switches |
| Power | |
| Input Voltage | 100 - 240 VAC, rated -54 to -57 VDC, rated (depending on power supply chosen) |
| Power Consumption Description | 420 W (maximum) |
| Dimensions | |
| Product Dimensions |
1.72 x 17.32 x 12.6 in 4.36 x 44 x 32 cm |
| Weight |
9.92 lbs 4.5 kg |
