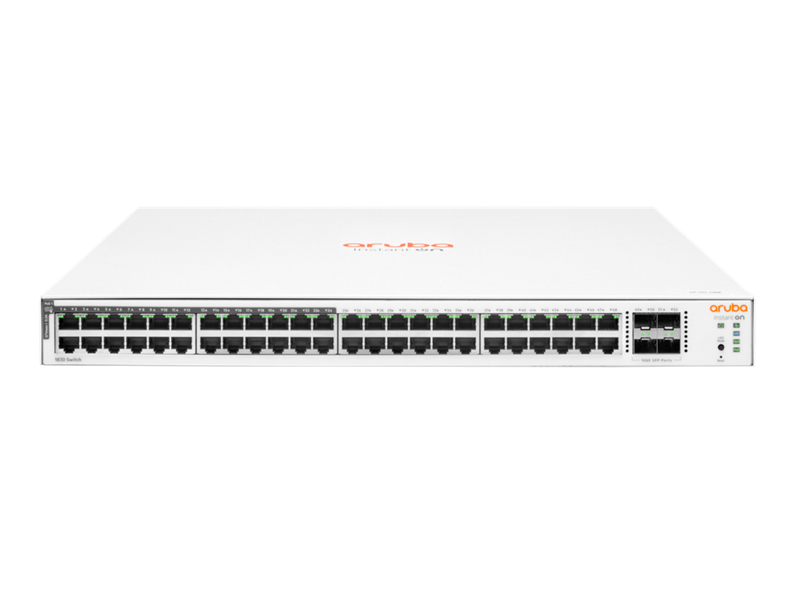

JL815A là sản phẩm chuyển mạch cao cấp nhất trong dòng Switch Aruba Instant On 1830 được ra mắt đầu năm 2022. Thiết kế 48 cổng Gigabit RJ-45 1Gbe tích hợp tính năng Autosensing và Auto-Port Shutdown, từ cổng 1 đến cổng 24 tích hợp cấp nguồn PoE Class 4 tổng mức công suất lên đến 370W, 4 cổng Uplink quang SFP 1GbE Transceiver.
Switch Aruba JL815A được quản lý dễ dàng mọi lúc mọi nơi bằng ứng dụng trên điện thoại, trên clound hoặc giao diện Web GUI. Tích hợp các tính năng bảo mật nâng cao như Vlans, automatic Denial-of-service protection, Global Storm Control dựa trên nền tảng TPM đáng tin cậy.
| Datasheet JL815A | |
| Specifications | |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
| Physical Characteristics | |
| Dimensions | 351.0(d) x 443.0(w) x 43.9(h) mm |
| Weight | 10.90 lb (4.94 kg) |
| Memory and Flash | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
| Performance | |
| Throughput (Mpps) | 77.37 Mpps |
| Switching capacity | 104 Gbps |
| 100 Mb latency | < 5.2 uSec |
| 1000 Mb latency | < 2.8 uSec |
| MAC address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 83.5 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics1 | |
| Idle | LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
| 100% traffic | LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
| 100% traffic / 0% PoE | LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
| 100% traffic / 50% PoE | LWAd = 4.0 Bel LpAm (Bystander) = 25 dB |
| 100% traffic / 100% PoE | LWAd = 5.7 Bel LpAm (Bystander) = 41 dB |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200- 240VAC |
| Current | 5.2A/2.6A |
| Maximum power rating | 100-127V: 462.5W 200-220V: 452.5W |
| Idle power | 100-127V: 25.8W 200-220V: 25.4W |
| PoE power | 370 W Class 4 PoE |
| Power supply | Internal power supply |
| Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Immunity | |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000 -4-2 |
| Radiated | EN/IEC 61000 -4-3 |
| EFT/Burst | EN/IEC 61000 -4-4 |
| Surge | EN/IEC 61000 -4-5 |
| Conducted | EN/IEC 61000 -4-6 |
| Power frequency magnetic field | EN/IEC 61000 -4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000 -3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting | |
| Mounting positions and supported racking |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
