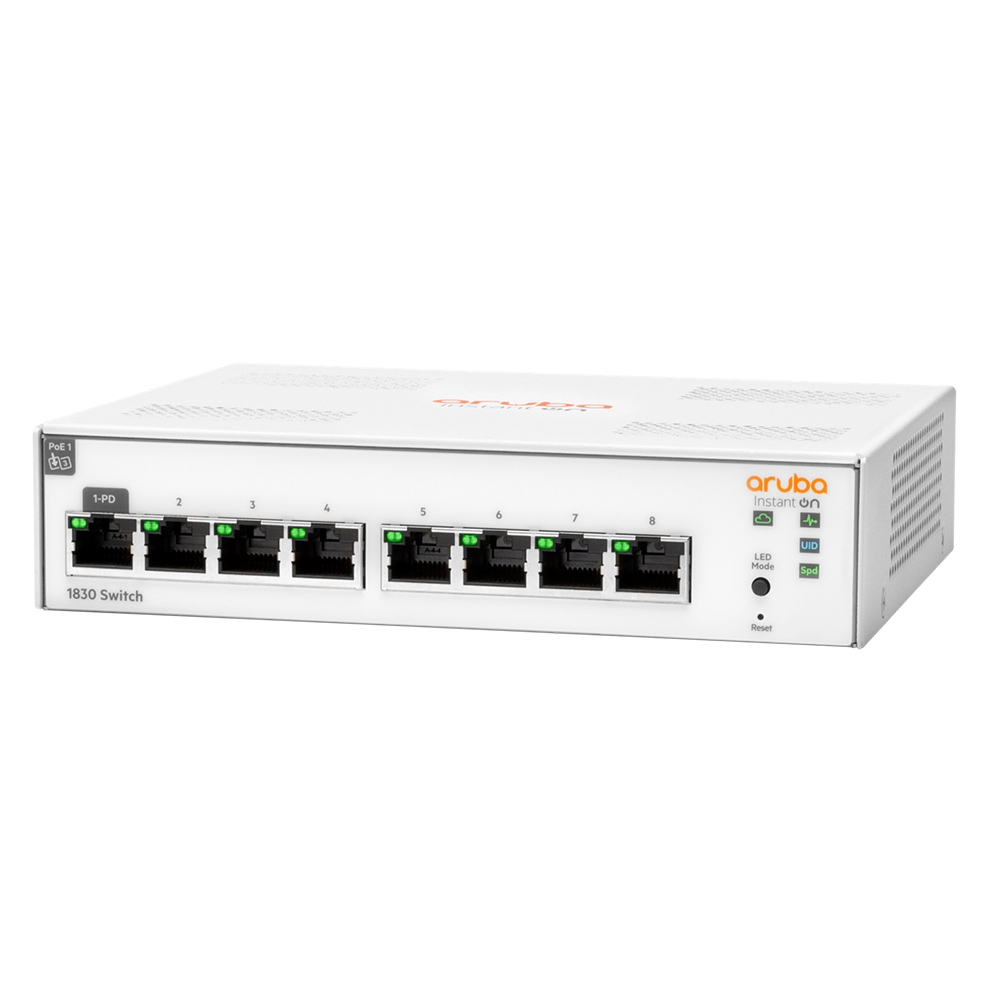

JL810A là sản phẩm chuyển mạch được quản lý, cung cấp 8 Port RJ-45 Gigabit tích hợp tính năng autosensing tự động chọn tốc độ Ethernet tương thích (10/100/1000). Thiết bị này có thiết kế không quạt và được cấp nguồn PoE 13W ở Class 3 trên Port 1 rất linh hoạt khi lắp đặt không cần bổ sung ổ cắm điện và dây điện .
| Datasheet JL810A | |
| Specifications | |
| I/O ports and slots |
8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Physical Characteristics | |
| Dimensions | 157.0(d) x 173.0(w) x 39.1(h) mm |
| Weight | 1.70 lb (0.77 kg) |
| Performance | |
| Throughput (Mpps) | 11.90 Mpps |
| Switching capacity | 16 Gbps |
| 100 Mb latency | < 5.2 uSec |
| 1000 Mb latency | < 2.8 uSec |
| Throughput (Mpps) | 11.90 Mpps |
| Switching Capacity | 16 Gbps |
| MAC address table size (# of entries) | 8,000 entries |
| Reliability MTBF (years) | 188.2 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics1 | |
| Idle | Fanless |
| 100% traffic | Fanless |
| 100% traffic / 0% PoE | Fanless |
| 100% traffic / 50% PoE | Fanless |
| 100% traffic / 100% PoE | Fanless |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200- 240VAC |
| Current | 12V -- 1.0A |
| Maximum power rating | 100-127V: 8.09W 200-220V: 8.05W |
| Idle power | 100-127V: 5.8W 200-220V: 5.9W |
| PoE power | 13W max Class 3 PD |
| Power supply | External power adapter (included) |
| Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Immunity | |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000 -4-2 |
| Radiated | EN/IEC 61000 -4-3 |
| EFT/Burst | EN/IEC 61000 -4-4 |
| Surge | EN/IEC 61000 -4-5 |
| Conducted | EN/IEC 61000 -4-6 |
| Power frequency magnetic field | EN/IEC 61000 -4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000 -3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting | |
| Mounting positions and supported racking |
Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes |
