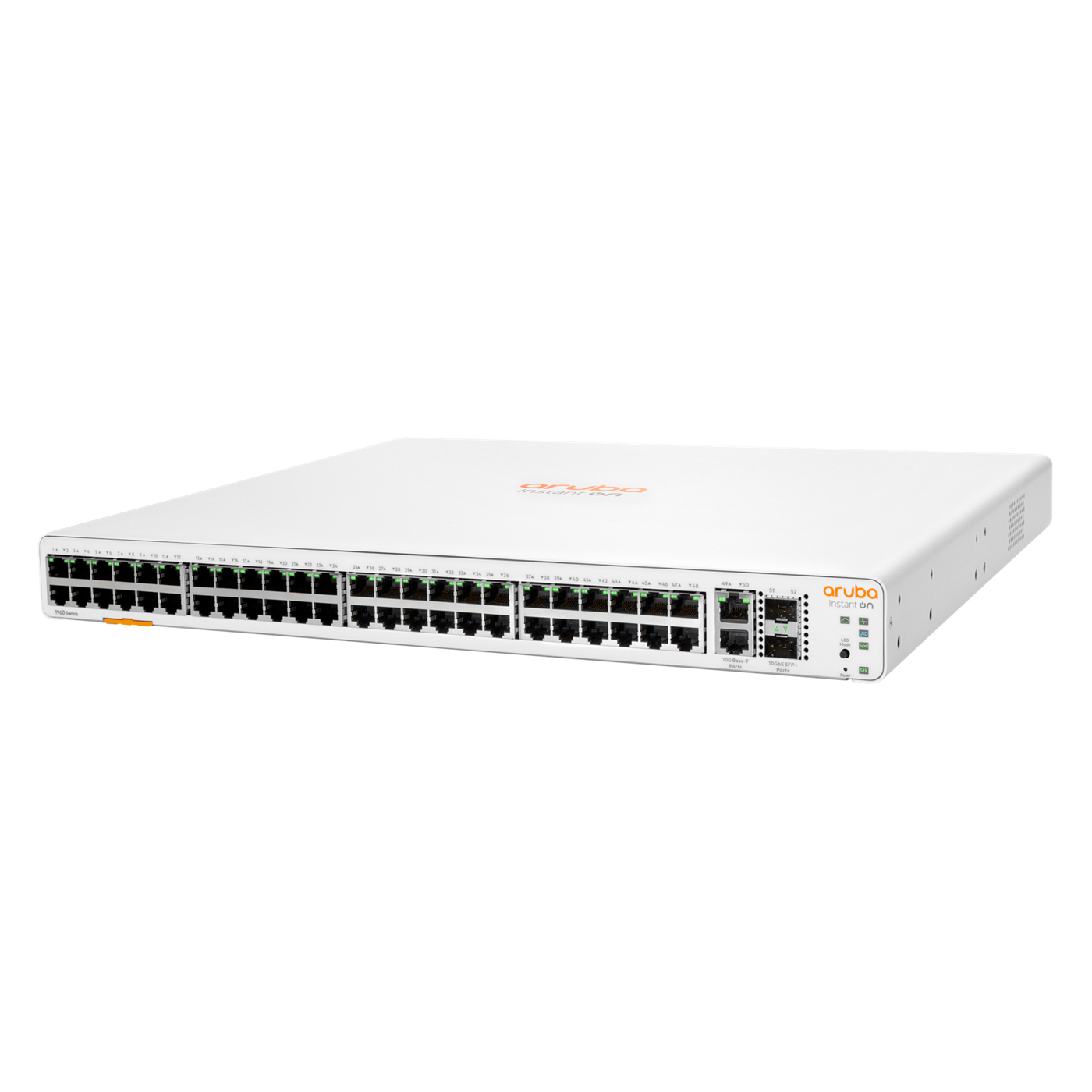

Model | Aruba Instant On 1960 48G 2XGT 2SFP+ Switch (JL808A) |
Performance | |
Throughput (Mpps) | 131 Mpps |
Capacity | 176 Gbps |
Routing Table size | 32 IPv4/IPv6 |
MAC Address table size | 16,000 entries |
Reliability MTBF (years) | 109.4 |
Hardware | |
CPU | Single-Core ARM v7 Cortex-A9 @800MHz |
Interface | 48 RJ-45 autosensing 10/100/1000 Mbps ports 2 SFP+ 10GbE ports 2 10GBASE-T ports |
Physical Characteristics | |
Dimensions | 350.5(d) x 442.5(w) x43.95(h) mm |
Weight | 4.4 kg |
Environment | |
Operating temperature | 0-40°C, 0-10,000 ft |
Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to70°C) up to 15000 ft |
Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
Altitude | up to 10,000 ft (3 km) |
Electrical Characteristics | |
Frequency | 50Hz/60Hz |
AC voltage | 100-127VAC /200-240VAC |
Current | 1.1A/0.4A |
Maximum power rating | 100-127V: 110W 200-220V: 120W |
Idle power | 100-127V: 60W 200-220V: 80W |
