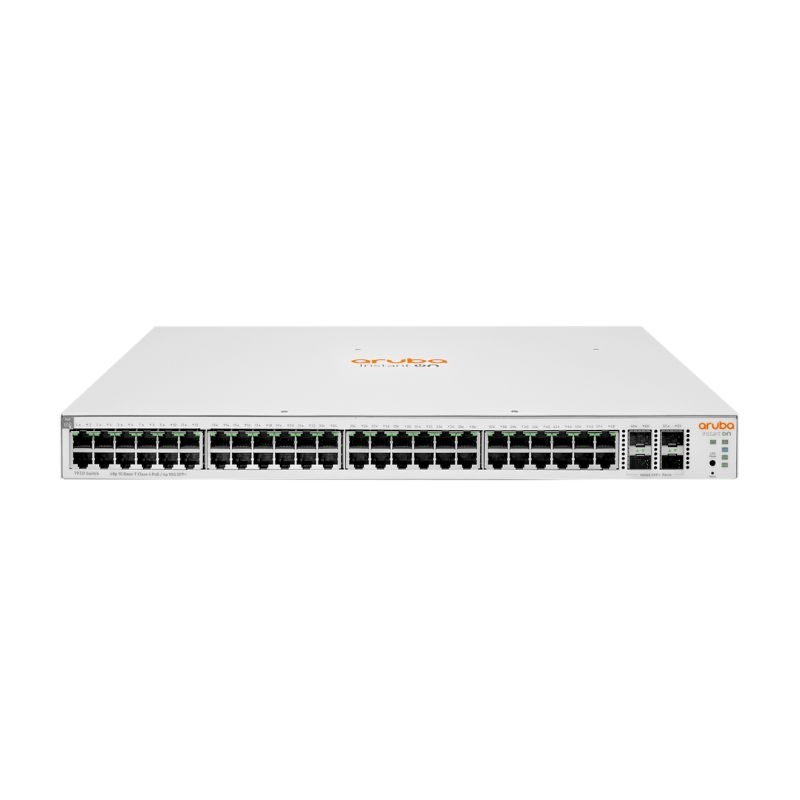

| Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A) | |
| I/O Ports and Slots | - 48 Ports GE RJ-45 PoE+ - 4 SFP+ 1/10GbE ports |
| Physical characteristics | |
| Dimensions | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height) |
| Weight | 9.97 lb (4.52 kg) |
| Hardware | |
| CPU | ARM Cortex-A9 @ 800 MHz |
| Memory | 512 MB SDRAM |
| Flash | 256 MB flash |
| Packet buffer | 1.5 MB |
| Performance | |
| Switching capacity | 176 Gbps |
| Throughput capacity | 130.95 Mpps |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Non-operating temperature | ‑40°F to 158°F (‑40°C to 70°C) |
| Non-operating relative humidity | 15% to 95% @ 140°F (60°C) |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Acoustics | - Pressure: 40.6 - Power: 63.2 dB |
| Electrical characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100 - 127 / 200 - 240 VAC |
| Current | 5/2.5 A |
| Maximum power rating | 460.0 W |
| Idle power | 34.5 W |
| PoE power | 370 W Class 4 PoE |
| Safety | UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
| Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
| Immunity | - Generic CISPR 24 / CISPR 35 - EN EN 55024:2010 / EN 55035:2017 ESD IEC 61000-4-2 - Radiated IEC 61000-4-3 - EFT/Burst IEC 61000-4-4 - Surge IEC 61000-4-5 - Conducted IEC 61000-4-6 - Power frequency magnetic field IEC 61000-4-8 - Voltage dips and interruptions IEC 61000-4-11 - Harmonics IEC 61000-3-2, EN 61000-3-2 - Flicker IEC 61000-3-3, EN 61000-3-3 |
| Device Management | Aruba Instant On solution; Web browser; SNMP Manager |
