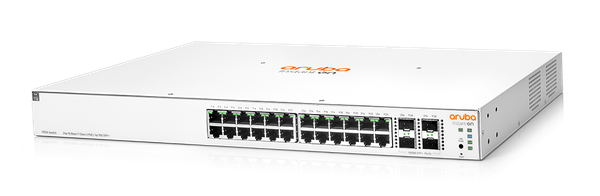

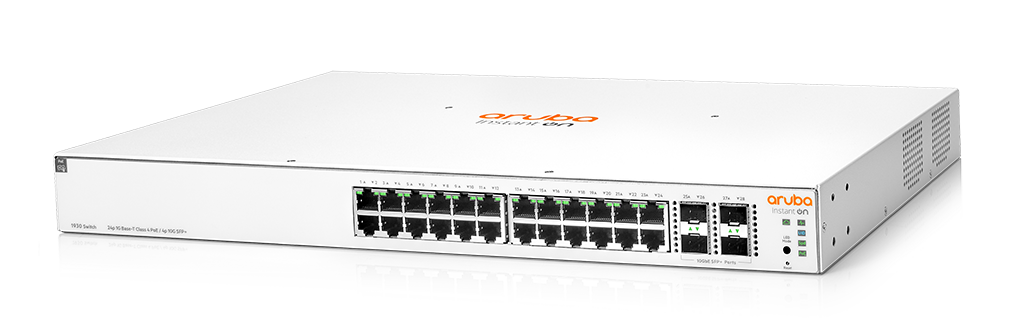

| Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A) | |
| I/O Ports and Slots | - 24 Ports 10/100/1000 PoE+ - 4 SFP+ 1/10GbE ports |
| Physical characteristics | |
| Dimensions | 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) |
| Weight | 8.10 lb (3.67kg) |
| Hardware | |
| CPU | ARM Cortex-A9 @ 800 MHz |
| Memory | 512 MB SDRAM |
| Flash | 256 MB flash |
| Packet buffer | 1.5 MB |
| Performance | |
| Switching capacity | 128 Gbps |
| Throughput capacity | 95.23 Mpps |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Non-operating temperature | ‑40°F to 158°F (‑40°C to 70°C) |
| Non-operating relative humidity | 15% to 95% @ 140°F (60°C) |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Acoustics | - Pressure: 32.2 dBA - Power: 58.5 dB |
| Electrical characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100 - 127 / 200 - 240 VAC |
| Current | 4.8/2.4 A |
| Maximum power rating | 439.0 W |
| Idle power | 20.9 W |
| PoE power | 370 W Class 4 PoE |
| Power supply | Internal power supply |
