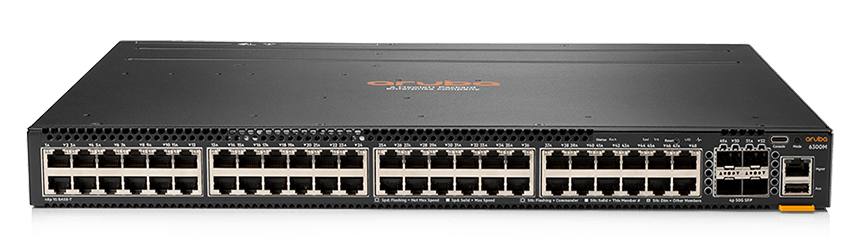

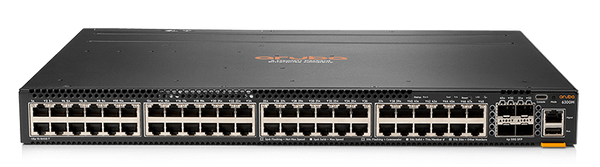

Thiết bị chuyển mạch Aruba JL664A là dòng thiết bị chuyển mạch có thể stack hiện đại, linh hoạt và thông minh, lý tưởng cho enterprise network access, aggregation hoặc core. Aruba JL664A được tạo ra để thay đổi hiệu quả hoạt động của trò chơi với tính năng bảo mật và khả năng phục hồi tích hợp, JL664A cung cấp nền tảng cho các mạng hiệu suất cao hỗ trợ các ứng dụng IoT, di động và đám mây.
Aruba JL664A sử dụng tính năng built-in time series database cho phép khách hàng và nhà phát triển sử dụng các tập lệnh phần mềm để khắc phục sự cố lịch sử, cũng như phân tích các xu hướng trong quá khứ. Điều này giúp dự đoán và tránh các vấn đề trong tương lai do tắc nghẽn về quy mô, bảo mật và hiệu suất.
| Datasheet Aruba JL664A | |
| Specifications | |
| I/O ports and slots |
|
| Additional |
|
| Ports And Slots |
1x OOBM 1x USB Type A host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies |
2 field-replaceable, hot- swappable power supply slots. 1 minimum power supply required (ordered separately) Supports JL085A PSU |
| Fan tray |
Switch has two fan tray slots and comes with two fan trays installed. Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required. Each fan tray is comprised of two fans. |
| Physical characteristics | |
| Dimensions |
17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm) |
| Weight | 11.97 lbs (5.43 kg) |
| CPU, Memory And Flash | |
| Processor | Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory |
8 GBytes DDR4 |
| Flash | 32 GBytes eMMC |
| Mounting and enclosure | Rack Mount 1U |
| Performance | |
| Packet Buffer |
8 MB packet buffer memory |
| System switching capacity | 880 Gbps |
| System throughput capacity | 660 Mpps |
| Model switching capacity | 448 Gbps |
| Model throughput capacity | 334 Mpps |
|
Average latency (LIFO, 64-byte packets) |
|
| Stack size | 10 members |
| Max stacking distance | Up to 10 kms with long range transceivers |
| Stacking bandwidth | 200 Gbps |
| Switched virtual interfaces (dual stack) | 1,000 |
| IPv4 host table (ARP) | 28,800 |
| IPv6 host table (ND) | 28,800 |
| IPv4 unicast routes | 64,000 |
| IPv6 unicast routes | 32,000 |
| IPv4 multicast routes | 8,000 |
| IPv6 multicast routes | 8,000 |
| MAC table capacity | 29,490 |
| IGMP groups | 8,000 |
| MLD groups | 4,000 |
| IPv4/IPv6/MAC ACL entries (ingress) | 5000/1250/5000 |
| IPv4/IPv6/MAC ACL entries (engress) | 2000/500/2000 |
| Environment | |
| Operating temperature |
32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de-rating per 1,000 feet above 5,000 feet Can support excursion to 131°F (55°C) for short periods1 of time. |
| Operating relative humidity | 15% to 95% relative humidity at 104°F (40°C), non-condensing |
| Non-operating temperature | -40°F to 158°F ('-40°C to 70°C) |
| Non-operating humidity | 15% to 95% relative humidity at 149°F(65°C), non-condensing |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Max non-operating altitude | Up to 15,000ft (3.048 Km) |
| Acoustic |
Sound power, LWAd = 4.6 Bel Sound pressure, LpAm (bystander) = 28.6 dB |
| Primary airflow | Front and side-to-back |
| Electrical characteristics | |
| Frequency |
50/60 Hz |
| AC voltage | JL085A PSU: 100V-240V |
|
Current (for voltages listed above) |
JL085A PSU: 3A/1.2A |
| Power consumption (230VAC) |
Hibernation (0 rpm fan): 9W Idle: 49W 100% traffic rate: 64W |
| Safety and Emissions | |
| Safety |
Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 US: UL 60950-1 2nd Ed Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations |
| Emissions |
Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013 US: FCC part 15 Class A Canada: ICES-003 Class A Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 |
| Lasers |
EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity |
Generic: CISPR 24 / CISPR 35 EN: EN 55024:2010 / EN 55035:2017 ESD: IEC 61000-4-2 Radiated: IEC 61000-4-3 EFT/Burst: IEC 61000-4-4 Surge: IEC 61000-4-5 Conducted: IEC 61000-4-6 Power frequency magnetic field: IEC 61000-4-8 Voltage dips and interruptions: IEC 61000-4-11 Harmonics: IEC 61000-3-2, EN 61000-3-2 Flicker: IEC 61000-3-3, EN 61000-3-3 |
