GQQ-MDO500-XXXC
Thương hiệu:
Gigalight
Mã sản phẩm:
GQQ-MDO500-xxxC
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB

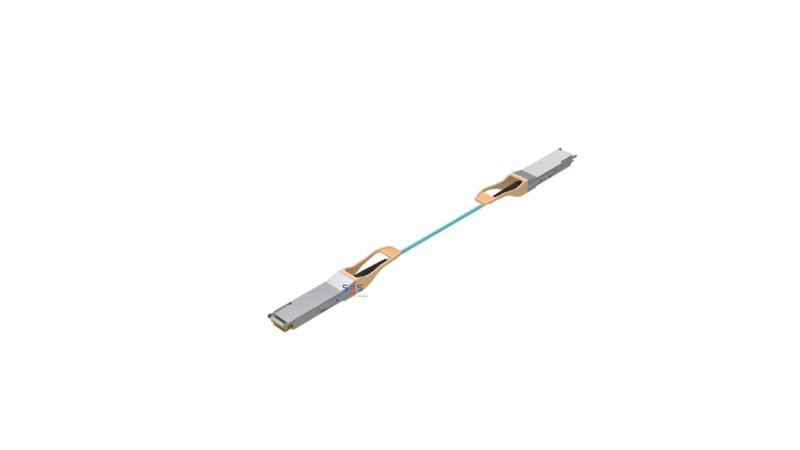

| GQQ-MDO500-xxxC | 50G QSFP28 AOC, 56Gb/s, length up to 70m (OM3) and 100m(OM4) xxx: 001 to 100, 1 to 100 length in meters |
- Hot-pluggable QSFP28 form-factor connectors
- 2 channels full-duplex 850nm parallel active optical cable
- Transmission data rate up to 28Gbps per channel
- Support 40GE and 56G FDR data rates
- 2 channels 850nm VCSEL array
- 2 channels PIN photo-detector array
- Internal CDR circuits on both receiver and transmitter channels
- Support CDR bypass
- Low power consumption <1.5W per end
- Length up to 70m using OM3 MMF and 100m using OM4 MMF
- Operating case temperature range 0°C to +70°C
- 3.3V power supply voltage
- RoHS-6 compliant (lead free)
Applications
- IEEE 802.3ba 40GBASE-SR4
- IEEE 802.3by 25GBASE-SR
- 32G Fibre Channel
- InfiniBand FDR/EDR
