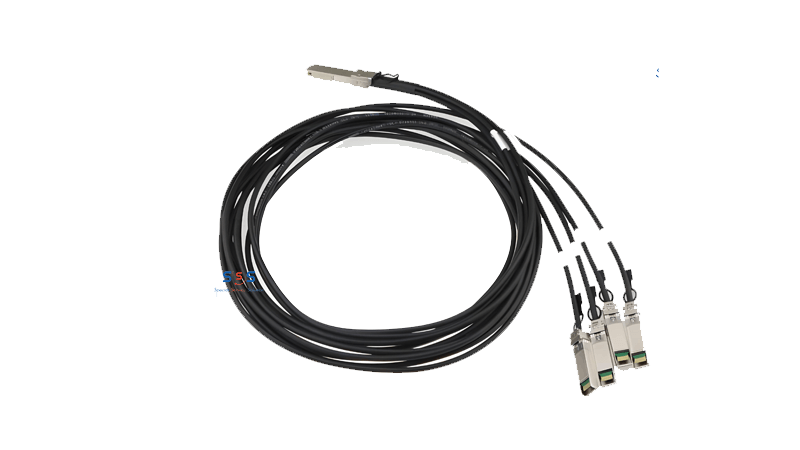

Gigalight Direct Attach Passive Copper Cables 1100G QSFP28 to 4X 25G SFP28 (GQS-4P28+PC-XXC)
Thương hiệu:
Gigalight
Mã sản phẩm:
GQS-4P28+PC-XXXXC
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
| Length（meter） | 1 | 2 | 3 | 4 | 5 |
| Wire gauge （AWG） |
30 | 30 | 26 | 26 | 26 |
- 4-channel full-duplex passive copper cable
- SFF-8665/SFF-8402 compliant QSFP28/SFP28 connectors
- SFF-8636 compliant I2C management interface
- IEEE 802.3bj 100GBASE-CR4 compliant
- IEEE 802.3by 25GBASE-CR compliant
- Data rate up to 100Gbps (4x 25Gbps)
- Copper link length up to 5m (passive limiting)
- Excellent signal integrity, low insertion loss and low crosstalk
- Operating case temperature range: 0°C to +70°C
- Single 3.3V supply voltage
- ROHS Compliant
Applications
- 100G Ethernet 100GBASE-CR4
- 25G Ethernet 25GBASE-CR
- SAS, servers, hubs, switches and routers
