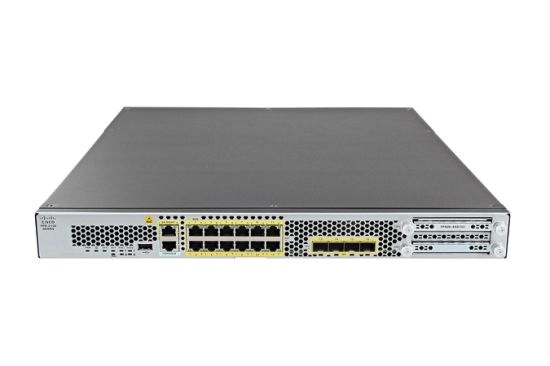

Thiết bị tường lửa Firewall Cisco FPR2120-NGFW-K9
| Model | FPR2120-NGFW-K9 |
| Interfaces | 12 x RJ45, 4 x SFP |
| Firewall | 6G |
| NGFW | 3G |
| IPS Throughput | 3G |
| Optional interfaces | N/A |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU |
| Maximum number of interfaces | Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) |
| Integrated network management ports | 1 x Giga Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 Type-A (500mA) |
| Storage | 1x 100 GB, 1x spare slot (for MSP) |
| Power supply configuration | Single integrated 250W AC power supply. |
| Weight | 16.1 lb (7.3 kg): with 2x SSDs |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Throughput: FW + AVC (1024B) | 3 Gbps |
| Throughput: FW + AVC + IPS (1024B) | 3 Gbps |
| Maximum concurrent sessions, with AVC | 1.5 million |
| Maximum new connections per second, with AVC | 17K |
| TLS (Transport Layer Security) | 475 Mbps |
| Throughput: IPS (1024B) | 3 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) | 1 Gbps |
| Maximum VPN Peers | 3,500 |
| Cisco Firepower Device Manager (local management) | Yes |
| Stateful inspection firewall throughput1 | 6 Gbps |
| Stateful inspection firewall throughput (multiprotocol)2 | 3 Gbps |
| Concurrent firewall connections | 1.5 million |
| New connections per second | 28,000 |
| IPsec VPN throughput (450B UDP L2L test) | 700 Mbps |
| Maximum VPN Peers | 3,500 |
| Security contexts (included; maximum) | 2; 25 |
| High availability | Active/active and active/standby |
