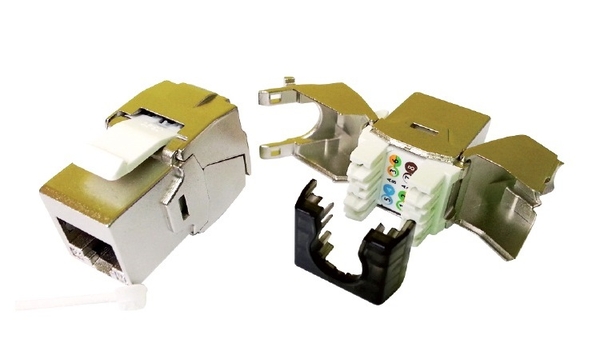

Đầu nối RJ45-Modular Jack LS CAT6A Shieled ERI (LS-MJ-SC6A-ERI)

Liên hệ
Còn hàng
( Giá sản phẩm đã bao gồm VAT )

Đầu nối RJ45 LS-MJ-SC6A-ERI là modular jack CAT6A Shielded, giúp chống nhiễu, đảm bảo kết nối 10Gbps Ethernet với băng thông 500MHz. Thiết kế vỏ kim loại, tiếp điểm mạ vàng, hỗ trợ đấu dây T568A/T568B. Phù hợp cho LAN, Data Center, VoIP, Camera IP, đảm bảo tín hiệu ổn định, bền bỉ, dễ lắp đặt.

Đầu nối RJ45-Modular Jack LS CAT6A chống nhiễu,dạng ERI (LS-MJ-SC6A-ERI)

-   Part Number: LS-MJ-SC6A-ERI.
-   Category 6A Shielded Keystone Jack, Slim Enhanced Rear IDC type.

Description

-   LS Simple™ Shielded Modular Jack.
-   User instructions and basic wiring layout for standard configuration are included.
-   Optimized Category 6A Modular Jack design to mitigate the crosstalk noise.
-   Designed and manufactured to meet demanding of international standards.
-   Individually terminated using slim-IDC (Insulation Displacement Connectors).
-   T568A or T568B configuration.
-   47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2 (Category 6A) and ISO/IEC 11801 compliant.
-   High impact flame retardant plastic housing.
-   Easy & Fast installation by using dedicated EZT (Easy Termination) Tool.
-   UL Listed & RoHS compliant.

Application

-   Horizontal Distribution & Backbone Cabling.
-   4/16 Mbps Token Ring(IEEE 802.5).
-   10/100/1000/10G BASE-T(IEEE 802.3).
-   155 Mbps ATM.
-   100Mbps TP-PMD.
-   ISDN, ADSL.
-   ATM LAN 1.2G.

Specification

Part Number LS-MJ-SC6A-ERI
Electrical / Mechanical Characteristics
Current Rating 1.5 A
Insulation Resistance 500 MΩ
DC Resistance 0.1 Ω Max
Voltage 150 VAC Max
Insertion Life 750 Mating Cycles
Plug Retention Force 20 lbs (89N)
Temperature -40ºC ~ 68ºC
Humidity 10% ~ 90% RH
IDC Accept 22 ~ 26 AWG Solid Wire
Dimension 0.64 x 0.66 x 1.5 inch
Materials
Housing High Impact Flame Retardant Plastic, UL 94V-0 Rated
Spring Wire Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat
IDC Plastic Polycarbonate or ABS, UL 94V-0 Rated over
IDC Contact Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin
Approvals
Category ANSI/TIA-568-C.2 Category 6A, ISO/IEC 11801 Class EA
Wiring Scheme T568A/T568B
Meet FCC CFR 47 Parts 68

Sản xuất tại Đài Loan.
