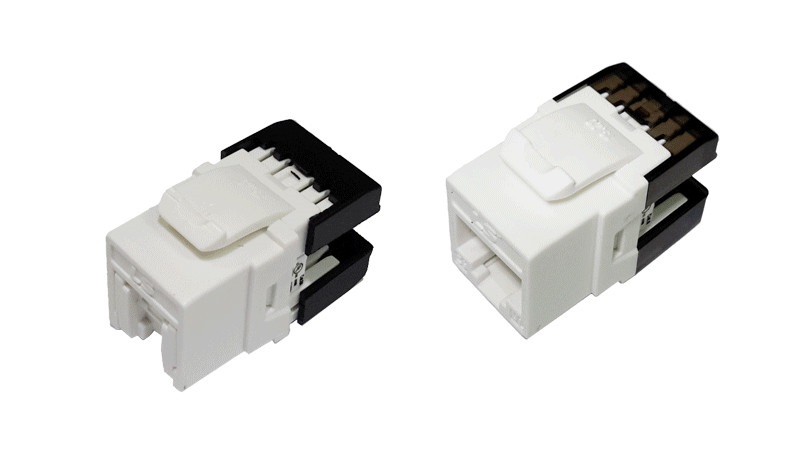

| Part Number | LS-MJ-UC5E-WH-ERI |
| Electrical / Mechanical Characteristics | |
| Current Rating | 1.5 A |
| DC Resistance | 0.1 Ω Max |
| Voltage | 150 VAC Max |
| Insertion Life | 750 Mating Cycles |
| Plug Retention Force | 20 lbs (89N) |
| Temperature | -40ºC ~ 68ºC |
| Humidity | 10% ~ 90% RH |
| IDC Accept | 22 ~ 26 AWG Solid Wire |
| Dimension | 0.76 x 0.66 x 1.5 inch |
| Materials | |
| Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
| Spring Wire | Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat |
| IDC Plastic | Polycarbonate or ABS, UL 94V-0 Rated |
| IDC Contact | Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin |
| Shield | Copper Zinc Alloy, Pre-Plated with Bright Nickel |
| Approvals | |
| Category | ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D |
| Wiring Scheme | T568A/T568B |
| Meet | FCC CFR 47 Parts 68 |
