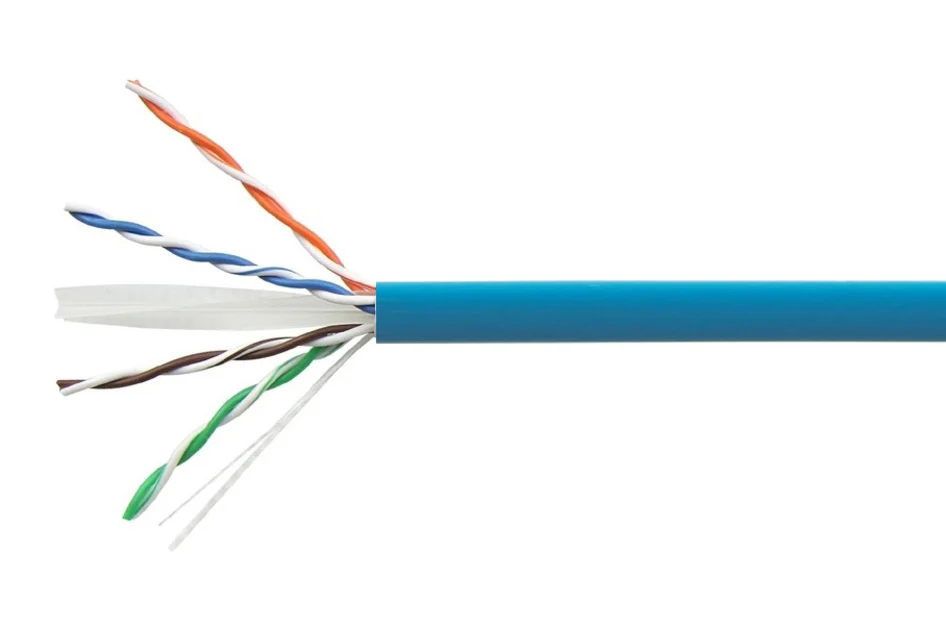

Category Cat 6 Cable, 4 pair, 24 AWG, U/UTP, CM, 305m, Reel in box, Blue, hàng chính hãng có tem chống hàng giả, đầy đủ CO/CQ/Parkinglish
Mã hàng: 1427071-6
Hỗ trợ chuẩn Gigabit Ethernet.
Thỏa tất cả các yêu cầu của Gigabit Ethernet(IEEE 802.3ab).
Thẩm tra độc lập bởi ETL SEMKO.
Băng thông hỗ trợ tới 600 MHz
Hiệu suất 3dB NEXT trên chuẩn Cat 6.
Độ dày lõi 24 AWG, 4-cặp UTP.
| Regional Availability | Asia |
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair cable |
| Product Number | CS30CM |
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Blue |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E |
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Insulated Conductor | 0.909 mm | 0.0358 in |
| Diameter Over Jacket, nominal | 5.410 mm | 0.213 in |
| Conductor Gauge, singles | 24 AWG |
| Characteristic Impedance | 100 ohm |
| dc Resistance Unbalance, maximum | 5 % |
| dc Resistance, maximum | 9.38 ohms/100 m | 2.859 ohms/100 ft |
| Delay Skew, maximum | 45 ns |
| Dielectric Strength, minimum | 1500 Vac | 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 68 % |
| Operating Frequency, maximum | 250 MHz |
| Operating Voltage, maximum | 80 V |
| Propagation Delay, maximum | 536 ns/100m @250MHz |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
CS
CommScope
Std
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typ
Typical
IL
Insertion Loss (dB/100m)
NEXT
Near End Crosstalk (dB/100m)
ACR
Attenuation to Crosstalk Ratio (dB/100m))
PSNEXT
Power Sum Near End Crosstalk (db/100m)
PSACR
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
ACRF
Attenuation to Crosstalk Ratio - Far End (dB/100m)
PSACRF
Insertion Loss (dB/100m)
RL
Return Loss (dB)
| Frequency | IL, STD | NEXT, STD | ACR, STD | PSNEXT, STD | PSACR, STD | ACRF, STD | PSACRF, STD | RL, STD | TCL, STD | ELTCTL, STD |
| 1.00 MHz | 2.0 | 74.3 | 72.3 | 72.3 | 70.3 | 67.8 | 64.8 | 20.0 | 40.0 | 35.0 |
| 4.00 MHz | 3.8 | 65.3 | 61.5 | 63.3 | 59.5 | 55.8 | 52.8 | 23.0 | 40.0 | 23.0 |
| 8.00 MHz | 5.3 | 60.8 | 55.4 | 58.8 | 53.4 | 49.9 | 46.9 | 24.5 | 40.0 | 16.9 |
| 10.00 MHz | 6.0 | 59.3 | 53.3 | 57.3 | 51.3 | 47.8 | 44.8 | 25.0 | 40.0 | 15.0 |
| 16.00 MHz | 7.6 | 56.2 | 48.7 | 54.2 | 46.7 | 43.7 | 40.7 | 25.0 | 38.0 | 10.9 |
| 20.00 MHz | 8.5 | 54.8 | 46.3 | 52.8 | 44.3 | 41.8 | 38.8 | 25.0 | 37.0 | 9.0 |
| 25.00 MHz | 9.5 | 53.3 | 43.8 | 51.3 | 41.8 | 39.8 | 36.8 | 24.3 | 36.0 | 7.0 |
| 31.25 MHz | 10.7 | 51.9 | 41.2 | 49.9 | 39.2 | 37.9 | 34.9 | 23.6 | 35.1 | |
| 62.50 MHz | 15.4 | 47.4 | 32.0 | 45.4 | 30.0 | 31.9 | 28.9 | 21.5 | 32.0 | |
| 100.00 MHz | 19.8 | 44.3 | 24.5 | 42.3 | 22.5 | 27.8 | 24.8 | 20.1 | 30.0 | |
| 155.00 MHz | 25.2 | 41.4 | 16.3 | 39.4 | 14.3 | 24.0 | 21.0 | 18.8 | 28.1 | |
| 200.00 MHz | 29.0 | 39.8 | 10.8 | 37.8 | 8.8 | 21.8 | 18.8 | 18.0 | 27.0 | |
| 250.00 MHz | 32.8 | 38.3 | 5.5 | 36.3 | 3.5 | 19.8 | 16.8 | 17.3 | 26.0 |
| Conductor Material | Bare copper |
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
| Minimum Bend Radius Note | 4 times the outer cable diameter |
| Installation temperature | 0 °C to +60 °C (-32 °F to +140 °F) |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Storage Temperature | -20 °C to +80 °C (-4 °F to +176 °F) |
| Environmental Space | Non-plenum |
| Flame Test Method | CM | UL 1685 |
| Packaging Type | Reel in box |
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS  |
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
