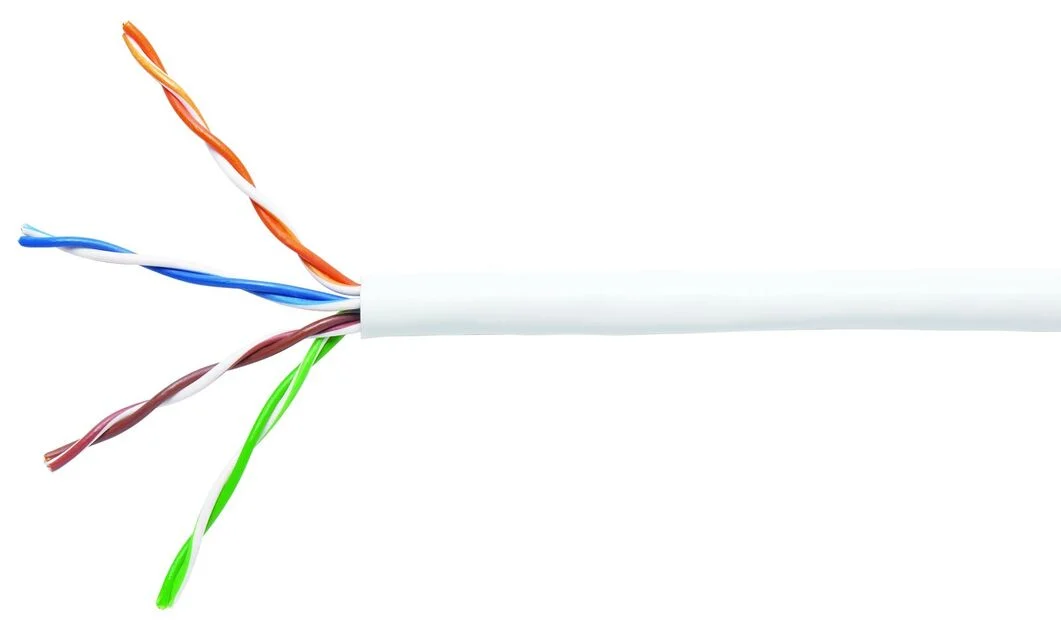

Cáp mạng AMP Commscope CAT5e (6-219590-2) (305m/cuộn)

Thương hiệu: commscope
Mã sản phẩm: PVN127
2.500.000₫
Mã giảm giá
Nhận tại cửa hàng
Số lượng
Trạng thái
Sẵn trong kho
  • Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
    Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
Mô tả đang cập nhật

Mô tả sản phẩm

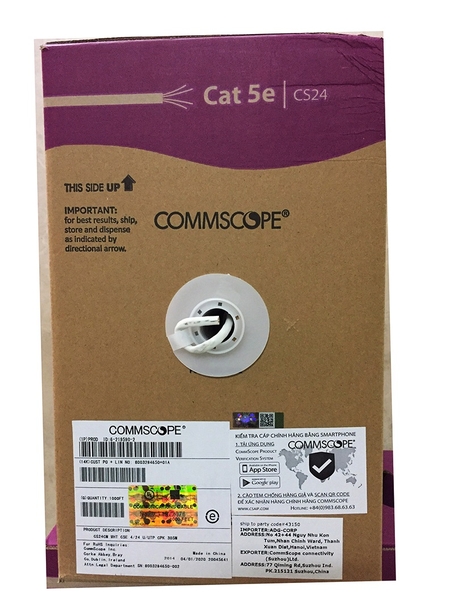

Cáp mạng AMP Commscope CAT5e (6-219590-2) (305m/cuộn), hàng chính hãng có tem chống hàng giả, đầy đủ CO/CQ/Parkinglish

Hỗ trợ chuẩn Gigabit Ethernet.
Thỏa tất cả các yêu cầu của Gigabit Ethernet(IEEE 802.3ab).
Thẩm tra độc lập bởi ETL SEMKO.
Băng thông hỗ trợ tới 200 MHz.
Độ dày lõi 24 AWG, solid, không có vỏ bọc chống nhiễu.
Vỏ cáp CM với nhiều chuẩn màu như : trắng, xám, xanh dương, vàng, được đóng gói dạng pull box, với chiều dài 1000 feet.

Specifications

Product Classification

Regional Availability Asia
Portfolio NETCONNECT®
Product Type Twisted pair cable
Product Series 510 Series

General Specifications

Product Number 510M
ANSI/TIA Category 5e
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class D

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Jacket, nominal 4.902 mm | 0.193 in
Conductor Gauge, singles 24 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

Operating Voltage, maximum 80 V
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Electrical Cable Performance

CS

CommScope

Std

Refers to the standard value listed under Transmission Standards in the Electrical Specifications above

Typ

Typical

IL

Insertion Loss (dB/100m)

NEXT

Near End Crosstalk (dB/100m)

ACR

Attenuation to Crosstalk Ratio (dB/100m))

PSNEXT

Power Sum Near End Crosstalk (db/100m)

PSACR

Power Sum Attenuation to Crosstalk Ratio (dB/100m)

ACRF

Attenuation to Crosstalk Ratio - Far End (dB/100m)

PSACRF

Insertion Loss (dB/100m)

RL

Return Loss (dB)

Frequency IL, STD NEXT, STD ACR, STD PSNEXT, STD PSACR, STD ACRF, STD PSACRF, STD RL, STD
1.00 MHz 2.0 65.3 63.3 62.3 60.3 63.8 60.8 20.0
4.00 MHz 4.1 56.3 52.2 53.3 49.2 51.8 48.8 23.0
8.00 MHz 5.8 51.8 46.0 48.8 43.0 45.7 42.7 24.5
10.00 MHz 6.5 50.3 43.8 47.3 40.8 43.8 40.8 25.0
16.00 MHz 8.2 47.2 39.0 44.2 36.0 39.7 36.7 25.0
20.00 MHz 9.3 45.8 36.5 42.8 33.5 37.8 34.8 25.0
25.00 MHz 10.4 44.3 33.9 41.3 30.9 35.8 32.8 24.3
31.25 MHz 11.7 42.9 31.2 39.9 28.2 33.9 30.9 23.6
62.50 MHz 17.0 38.4 21.4 35.4 18.4 27.9 24.9 21.5
100.00 MHz 22.0 35.3 13.3 32.3 10.3 23.8 20.8 20.1

Material Specifications

Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material PVC

Environmental Specifications

Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Flame Test Method CM

Packaging and Weights

Packaging Type Reelex

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS  Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
Tags: cat5E
