– Khả năng quan sát tốt với các video giám sát hình ảnh chất lượng cao
– Độ bền cao với khả năng hoạt động 24/7
– Giá thành hợp lý, là giải pháp an ninh tiết kiệm và hiệu quả
Thông số kỹ thuật

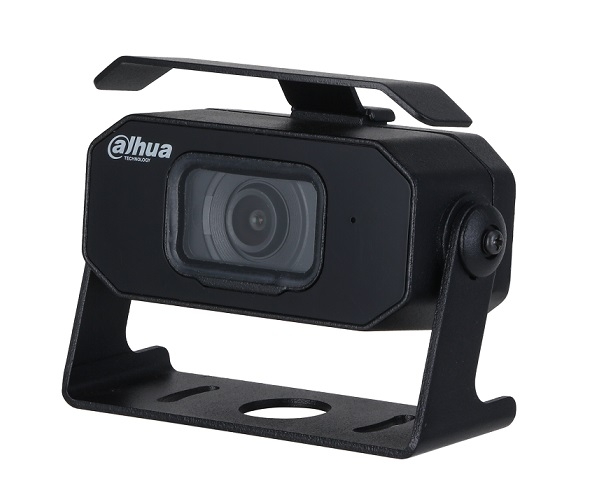

| Model | DH-HAC-HMW3200P |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 1920 (H) x 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Signal System | PAL |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s |
| S/N Ratio | >65 dB |
| Min. Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
| Illumination Distance | 20 m (65.6 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR) |
| Pan/Tilt/Rotation Range | Tilt: 0°–180° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.1 mm; 2.8 mm |
| Max. Aperture | 2.1 mm: F2.0 2.8 mm: F2.0 |
| Field of View | 2.1 mm: H: 133°; V: 77°; D: 153° 2.8 mm: H: 106°; V: 55°; D: 126° |
| Iris Type | Fixed iris |
| Video | |
| Frame Rate | CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; AHD: 1080p@25/30fps; 720p@25/30fps; TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; CVBS: 960H |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE/FCC |
| Port | |
| Audio Interface | Built-in Mic |
| Video Output | 1-channel CVI/CVBS/AHD/TVI switchable video output (Aviation connector) |
| Aviation Connector Interface | 1-power 2-video ground 3-power ground 4-video |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 2.3W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 107.3 mm × 74.9 mm × 54.5 mm (4.23' × 2.95' × 2.15') |
| Net Weight | 0.33 kg (0.73 lb) |
