Specifications
| Specifications | |
|---|---|

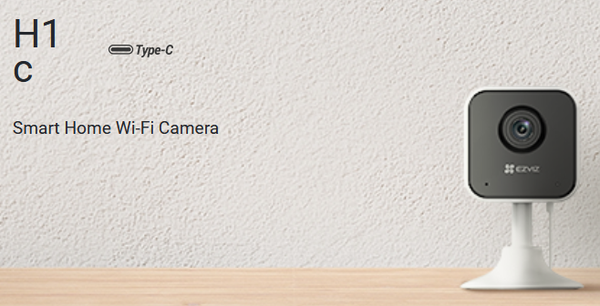

| Model | CS-H1c |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.4mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| IR Night Vision Distance | Up to 32 ft / 10 m |
| Video & Audio | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| H.264 Type | Main Profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1 Mbps |
| Function | |
| Smart Alert | Motion detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Network | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 3.0 W |
| Dimensions | 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch) |
| Packaging Dimensions | 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Net Weight | 87 g (3.07 oz) |
| Weight (With Package) | 305 g (10.76 oz) |
| In the box | |
| In the box | H1c Camera ×1 |
| Power Adapter x1 | |
| 2-Meter Power Cable x1 | |
| Foam Sticker x2 | |
| Metal Plate x1 | |
| Regulatory Information x2 | |
| Quick Start Guide x1 | |
| Certifications | |
| Certifications | CE/RoHS/WEEE/REACH |
