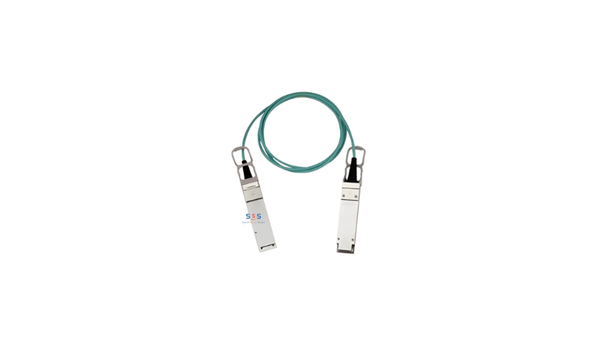

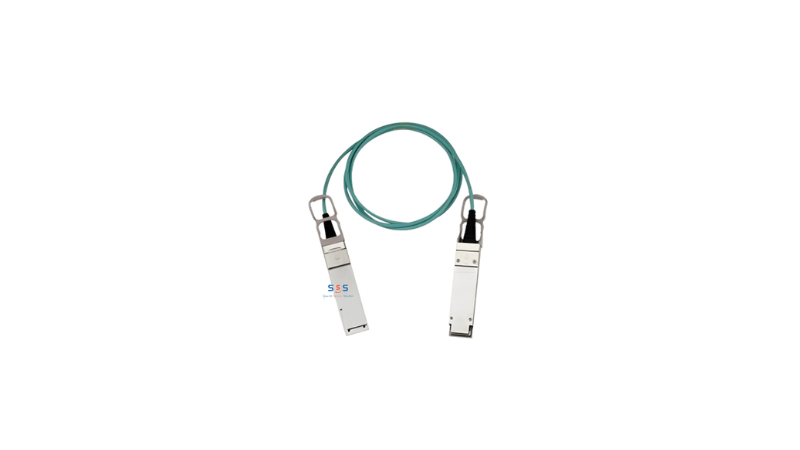

Cable module quang Gigalight 100GBASE-SR4 QSFP28 (GQS-MDO101-XXXCL)
Thương hiệu:
Gigalight
Mã sản phẩm:
GQS-MDO101-XXXCL
-
Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành) -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
| GQS-MDO101-XXXCL | QSFP28, 100GBASE-SR4, Active Optical Cable 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 Low power version |
- 4 channels full-duplex transceiver modules
- Transmission data rate up to 25Gbps per channel
- Support 40GE and 56G FDR data rate
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Internal CDR circuits on both receiver and transmitter channels
- Support CDR bypass
- Low power consumption <2.5W
- Hot Pluggable QSFP form factor
- Maximum link length of 70m on OM3 Multimode Fiber
- (MMF)and 100m on OM4 MMF
- Single MPO connector receptacle
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant(lead free)
Applications
- IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4
- Infiniband FDR/EDR
