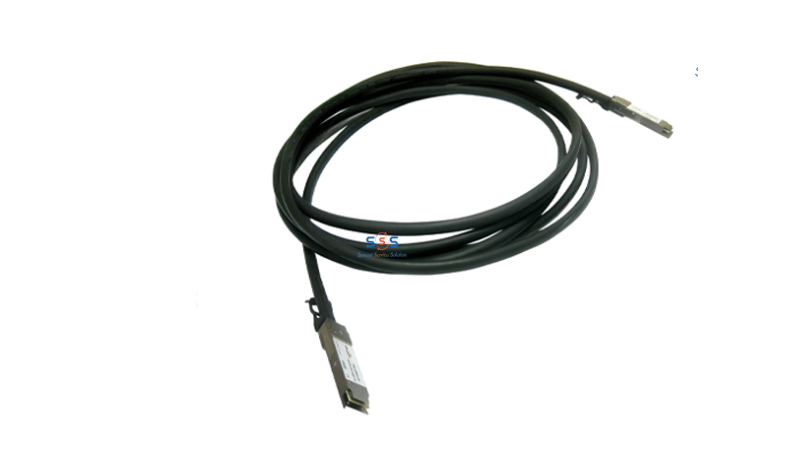

Cable Module Gigalight QSFP+ Direct Attach Passive Copper (GQS-PC400-XXXXC)

• QSFP+ conforms to the Small Form Factor SFF-8436
• 4-Channel Full-Duplex Passive Copper Cable Transceiver
• Support for multi-gigabit data rates :1 Gb/s – 10 Gb/s (per channel)
• Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
• Copper link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• I2C based two-wire serial interface for EEPROM signature which can be customized
• Temperature Range:

Applications

• 10 Gigabit Ethernet
• 40 Gigabit Ethernet
• InfiniBand4x SDR, DDR, QDR
• 2, 4, 8, 10 Gigabit Fiber Channel
• Fiber Channel over Ethernet
• SAS,Servers,Hubs,Switches,Routers
