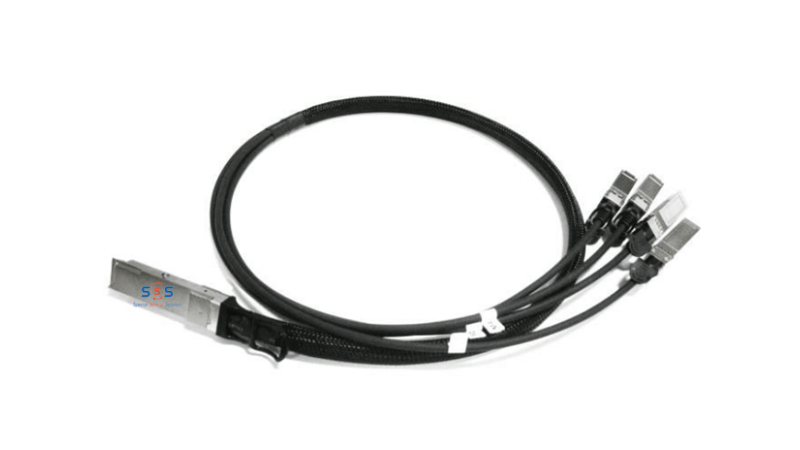

Cable Module Gigalight Hybrid Passive QSFP+ to 4xSFP+ (GQS-4SFP+PC-XXXXC)

• Hybrid cable conforms to the Small Form
• Factor SFF-8436 and SFF-8431
• Support for multi-gigabit data rates :1 Gb/s – 10 Gb/s (per channel)
• Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
• Hybrid cable link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• Temperature Range: 0~ 70 °C

Applications

40G QSFP+ to 4×10SFP+

• 10G/40Gigabit Ethernet
• InfiniBand4x SDR, DDR, QDR
• Switches, Routers, and HBAs
• Data Centers
• Fiber Channel
