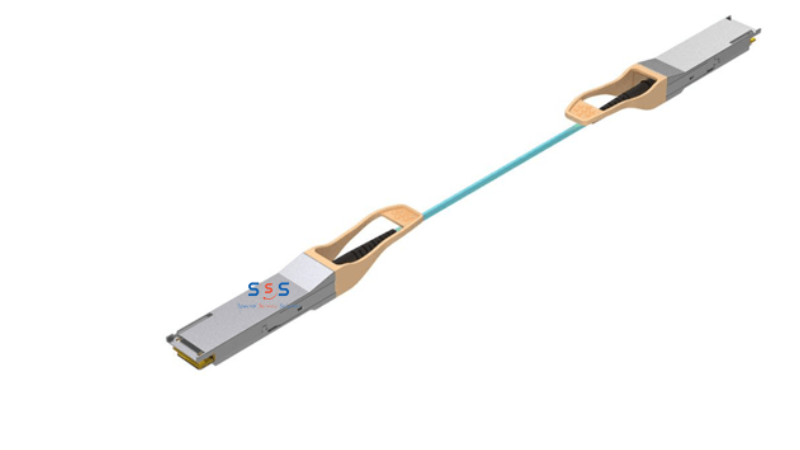

Cable Gigalight 56G QSFP+ Active (GQS-PC560-XXXXC)

• 4 channels full-duplex 850nm parallel active optical cable
• Transmission data rate up to 14Gbps per channel
• 4 channels 850nm VCSEL array
• 4 channels PIN photo-detector array
• SFF-8436 QSFP+ compliant
• Hot-pluggable electrical interface
• Differential AC-coupled high-speed data interface
• Up to 100m on OM3 MMF
• Low power consumption < 1.5W
• Operating case temperature range 0°C to +70°C
• 3.3V power supply voltage
• RoHS-6 compliant

Applications

• InfiniBand FDR/QDR/DDR/SDR
• 2G/4G/8G/10G/16G Fibre Channel
• PCIe 3.0
• SAS 3.0
