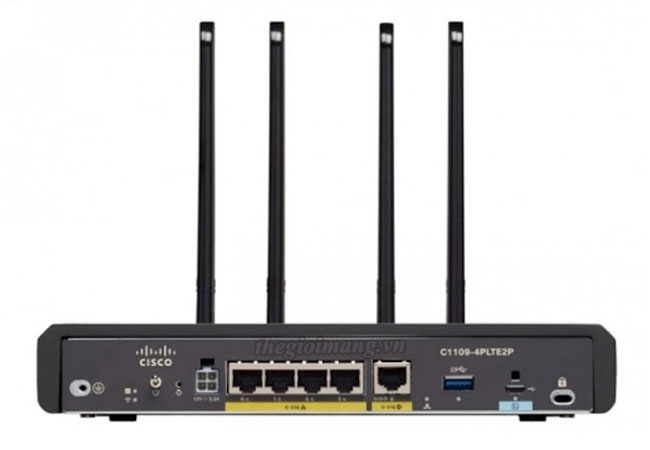

Datasheet C1109-4PLTE2P | |
Specification | |
Ports |
1x WAN 1G Ethernet ports 4x LAN 1G Ethernet ports |
Memory (default and maximum) |
DRAM: 4 GB Flash: 4 GB |
Console | Micro USB console |
LEDs | ● WWAN (green/amber). ● SIM status (green/amber). ● Received signal strength indication (RSSI) bar (green). ● 3G/LTE service (green/amber). ● GPS (green/amber). ● Speed and link for Gigabit Ethernet WAN port (green). ● Speed and link for all Fast Ethernet LAN ports (green). |
LTE Advanced (CAT6) | Yes with Pluggable Technology |
Power | |
AC input voltage | 100 to 240 VAC |
Frequency | 50 to 60 Hz |
Maximum output power | 30W (default iTemp for Models) |
Output voltages | 12 VDC |
Environmental operating range | -4° to 131°F (-20° to 55°C) |
Dimensions | |
Physical dimensions (H x W x D) | 1.71 x 11.16 x 9.8 in (43.4 x 283.5 x 248.9 mm) |
Weight | 5.93 lb (2.69kg) |
