Được thiết kế với Wi-Fi 6 để có dung lượng cao hơn và hiệu suất lớn hơn, Aruba Instant On AP22 có giá cạnh tranh là điểm truy cập hoàn hảo cho các doanh nghiệp nhỏ với các yêu cầu về di động, đám mây và IoT ngày càng mở rộng

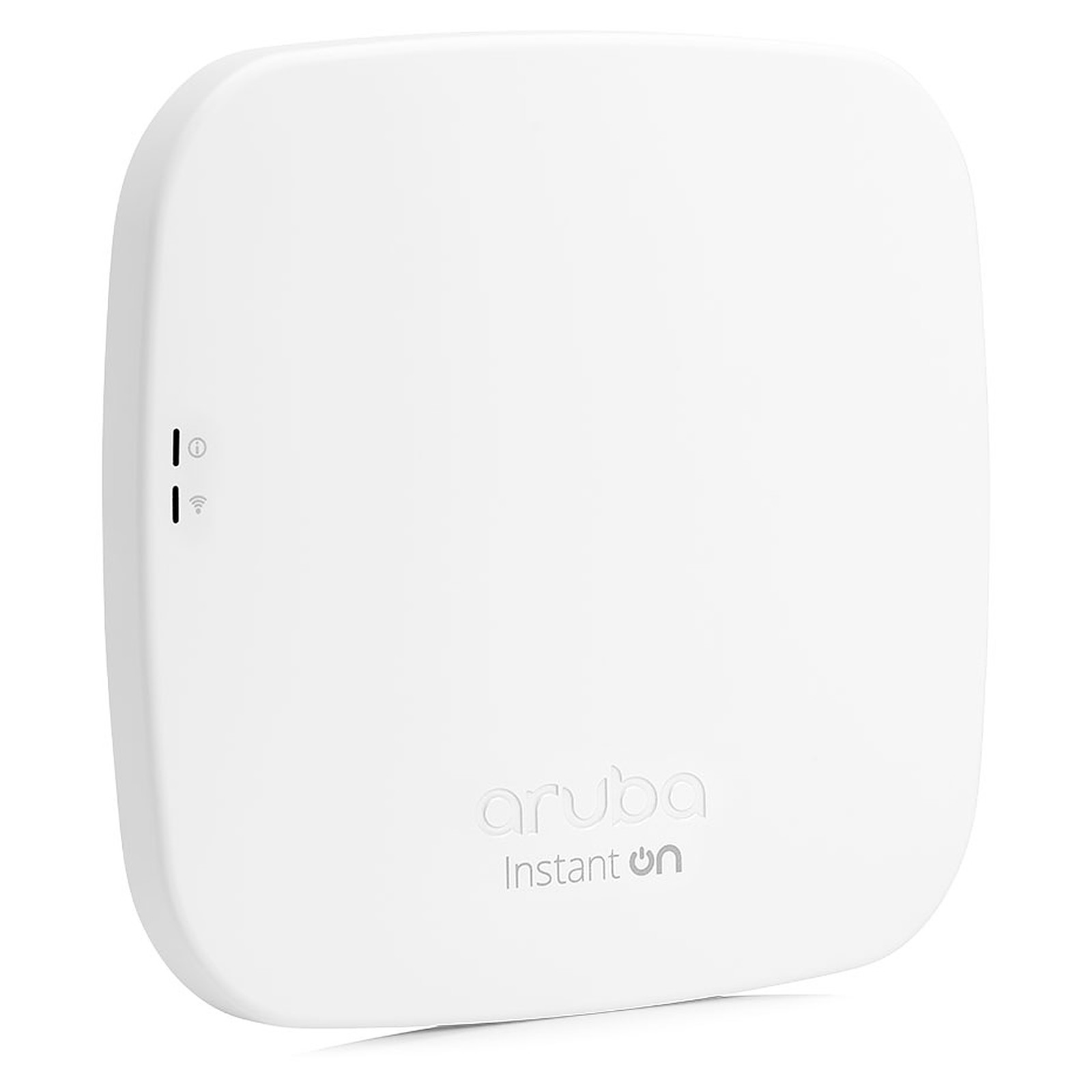

| Product | Instant On AP25 |
| Description | Indoor, dual radio, 5 GHz 802.11ac 2×2 MIMO and 2.4 GHz 802.11n 2×2 MIMO |
| Product Type | Access Point |
| Interfaces | – Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) – DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot |
| Radios | Dual radio for simultaneous dual-band operation – 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) – 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6) |
| Antennas | Down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band) |
| Transmit Power | – 5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain) – 2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain) |
| Features | Orthogonal frequency-division multiple access (OFDMA) |
| Target wake time (TWT) | |
| Multiuser, Multiple input, Multiple output (MU-MIMO) | |
| 1024-Quadrature Amplitude Modulation (1024-QAM) | |
| Trusted Platform Module (TPM) | |
| Aruba Advanced Cellular Coexistence (ACC) | |
| Low Density Parity Check (LDPC) | |
| Transmit Beamforming (TXBF) | |
| Mouting | – The access point ships with a white mount clip that can attach to both walls and ceilings – Mounts that match the design of the APs can be purchased separately |
| Physical specs | 160mm x 160mm x 37mm, excluding mount accessories
Weight: 500g |
| Power | – Power over Ethernet (POE): 802.3at (class 4) – Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC) – DC power (12V) |
| Management Option | – Instant On mobile application (Android & iOS) – Cloud Portal: Portal.ArubaInstantOn.com |
