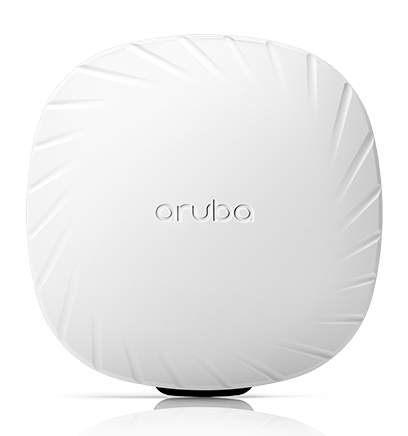

Thiết bị Access Point Wi-Fi 6 Aruba AP-503 (R8M98A)
| Model | AP-503 (R8M98A) |
| Wi-Fi radio specifications | • AP type: Indoor, dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2x2 MIMO • 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20) • 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices • Up to 256 associated client devices per radio, and up to 16 BSSIDs per radio |
| Wi-Fi antennas | • Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. • Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.5dBi in 2.4GHz and 3.9dBi in 5GHz. |
| Other interfaces and features | • E0: Ethernet wired network port (RJ-45) - Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX - POE-PD: 48Vdc (nominal) 802.3af POE (class 3 or higher) - 802.3az Energy Efficient Ethernet (EEE) • USB 2.0 host interface (Type A connector) - Capable of sourcing up to 100mA / 500mW to an attached device • Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting • Visual indicators (two multi-color LEDs): for System and Radio status • Reset button: factory reset, LED mode control (normal/off) • Serial console interface (proprietary, micro-B USB physical jack) • Automatic thermal shutdown and recovery function |
| Power sources and power consumption | • The AP supports Power over Ethernet (POE) on port E0 • Power sources are sold separately • Maximum (worst-case) power consumption: 10.9W • Maximum (worst-case) power consumption in idle mode: 4.7W • Both numbers assume no power is drawn from the USB interface - Drawing 0.5W from the USB interface increases max AP power consumption by up to 0.7W |
| Mechanical specifications | • Dimensions/weight (unit with mount bracket): - 145mm (W) x 145mm (D) x 51mm (H) - 270g • Dimensions/weight (unit without mount bracket): - 145mm (W) x 145mm (D) x 35mm (H) - 255g • Dimensions/weight (shipping): - 196mm (W) x 183mm (D) x 67mm (H) - 515g |
| Environmental specifications | • Operating conditions - Temperature: 0C to +40C - Relative humidity: 5% to 95% - ETS 300 019 class 3.2 environments - AP is plenum rated for use in air-handling spaces • Storage conditions - Temperature: -25C to +55C - Relative humidity: 10% to 100% - ETS 300 019 class 1.2 environments • Transportation conditions - Temperature: -40C to +70C - Relative humidity: up to 95% - ETS 300 019 class 2.3 environments |
