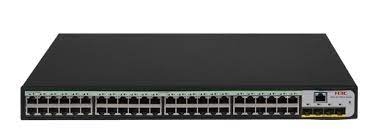

Thiết bị chuyển mạch H3C LS-5120V3-52S-PWR-LI-GL
Thiết bị chuyển mạch H3C LS-5120V3-52S-PWR-LI-GL với 48 cổng 10/100/1000Base-T hỗ trợ PoE+, với tổng công suất PoE khi sử dụng nguồn AC là 370W hoặc nguồn DC là 740W, 4 cổng quang 10G SFP+. Khả năng chuyển mạch của switch lên đến 176Gbps.

Thông số kỹ thuật switch H3C LS-5120V3-52S-PWR-LI-GL
Datasheet H3C LS-5120V3-52S-PWR-LI-GL |
Specification |
Fixed ports |
48x 10/100/1000Base-T PoE+ Ports
4x SFP+ Ports |
Management Ethernet ports |
1x RJ-45 console port |
Performance |
Switching capacity |
176 Gbps |
Packet forwarding rate |
130.952 Mpps |
Feature |
VLAN |
Port-based VLAN QinQ Voice VLAN Protocol VLAN MAC VLAN |
Link aggregation |
GE port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation |
Stacking |
IRF2 |
MAC address table |
Blackhole MAC address Setting the maximum number of port MAC addresses to be learned |
ARP |
ARP Detection
ARP speed limit |
DHCP |
DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option 82 |
DNS |
Static domain name resolution Dynamic domain name resolution for the client IPv4 and IPv6 address |
Routing protocols |
IPv4/IPv6 static routing RIP/RIPng, OSPFV1/V2/V3 |
QoS/ACL |
Packet filter SP/WRR/SP+WRR queue scheduling Bidirectional ACL Port-based speed limit Traffic-based redirection |
Security |
Hierarchical user management and password protection SSH2.0 Port isolation 802.1X Port security MAC address authentication IP Source Guard HTTPs EAD |
Specification Dimensions |
Dimensions (H x W x D) |
44 × 40× 4.36 cm |
Weight |
≤ 6 kg |
Power |
Input voltage range |
AC: The rated voltage range is 100V to 240V, 50/60Hz |
Power consumption |
MIN: AC: 36W
MAX: AC: 467W (PoE 370W) |
Operating temperature |
-5℃ to 45℃ |
Operating humidity |
5% RH to 95% RH, non-condensing |
