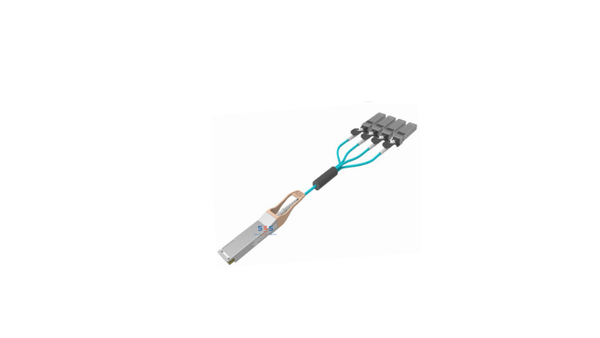

Cable module quang 100G QSFP28 to 4X 25G SFP28 (GQP-MDO101-xxxC)

Thương hiệu: Gigalight

Mã sản phẩm: GQP-MDO101-XXXC

Cable module quang 100G QSFP28 to 4X 25G SFP28 (GQP-MDO101-xxxC)

29.886.000₫

Mã giảm giá

Với đơn hàng trên 5 triệu giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB

GQP-MDO101-xxxC	100G QSFP28 to 4x 25G SFP28 Active Optical Cable
xxx :001~100,1~100 Length in meters. (OM4 fiber is available)

Electrical interface compliant to SFF-8436 and SFF-8431
Hot Pluggable
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Operating case temperature: 0 to 70℃
Internal CDR on both Transmitter and Receiver channels
Digital diagnostics functions are available via the I2C interface (Optional)
All-metal housing for superior EMI performance
RoHS compliant (lead-free)

Applications

40 Gigabit Ethernet
25GBASE-SR Ethernet
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
High-performance computing clusters
Servers, switches, storage and host card adapters

Mô tả sản phẩm

The Gigalight QSFP28 to 4x SFP28 breakout Active fiber optic cable provides technology professionals with a cost-effective connectivity solution for combining 100G QSFP28 and 25G SFP28-enabled switches, switches and servers. For common applications, users can install this split fiber cable between the QSFP28 port available on the switch with a speed of 100Gbps and connect up to four SFP28 switches that support 25GbE speeds up. Each QSFP28-SFP28 split optic cable has one QSFP28 (SFF-8436) header for 100Gbps and four SFP28 (SFF-8431) connectors for 25Gb/s each.
