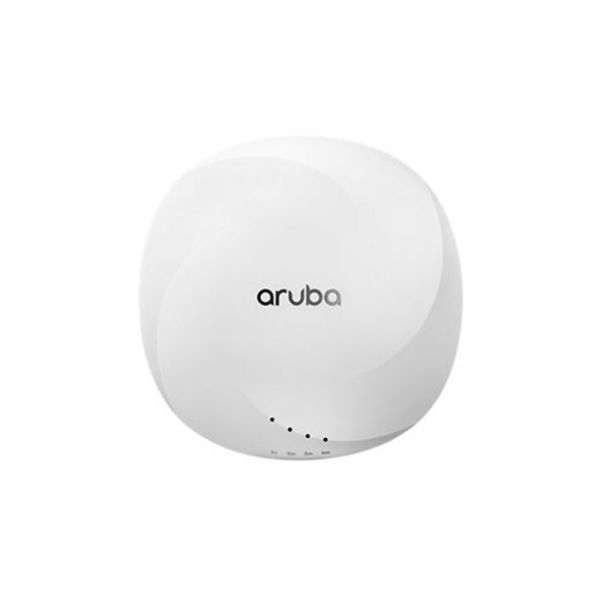

Bộ Phát Wifi Aruba AP-615 (RW) Wifi 6E Indoor Access Point

- 2.400 to 2.4835GHz ISM

- 5.150 to 5.250GHz U-NII-1

- 5.250 to 5.350GHz U-NII-2A

- 5.470 to 5.725GHz U-NII-2C

- 5.725 to 5.850GHz U-NII-3/ISM

- 5.850 to 5.895GHz U-NII-4

- 5.925 to 6.425GHz U-NII-5

- 6.425 to 6.525GHz U-NII-6

- 6.525 to 6.875GHz U-NII-7

- 6.875 to 7.125GHz U-NII-8

- 802.11b: Direct-sequence spread-spectrum (DSSS)

- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

- 8022.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

- 802.11b: BPSK, QPSK, CCK

- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256- QAM (proprietary extension)

- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)

- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)

- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)

- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

- 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

- 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.0dBi in 2.4GHz, 3.5dBi in 5GHz and 3.4dBi in 6GHz.

E0: Ethernet wired network ports (RJ-45) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX

- 2.5Gbps speed complies with NBase-T and 802.3bz specifications

- POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or higher)

- 802.3az Energy Efficient Ethernet (EEE)

DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector): Capable of sourcing up to 1A / 5W to an attached device

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

- BLE: up to 5dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps)

- Zigbee: up to 5dBm transmit power and -97dBm receive sensitivity (250kbps)

- Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.6dBi

GNSS L1 (1575.42MHz) receiver supporting GPS, Galileo, GLONASS and BeiDou signals

-Receive sensitivity: -162dBm (tracking)

- Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.3dBi

Advanced IOT Coexistence (AIC) allows concurrent operation of multiple radios in the 2.4GHz band

Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting

Visual indicators (four multi-color LEDs): for System (1x) and Radio (3x) status

Reset button: factory reset, LED mode control (normal/off)

Serial console interface (proprietary, micro-B USB physical jack)

Kensington security slot

Automatic thermal shutdown and recovery function

- 160mm (W) x 160mm (D) x 39mm (H)

- 520g

- 212mm (W) x 194mm (D) x 66mm (H)

- 800g

- Relative humidity: 5% to 95%

- ETS 300 019 class 3.2 environments

- AP is plenum rated for use in air-handling spaces

- Relative humidity: 10% to 100%

- ETS 300 019 class 1.2 environments

- Relative humidity: up to 95%

- ETS 300 019 class 2.3 environments
